After calculating a path, you can view the status and result of the path:

▪View Path Result in Path Result Pane

▪View Path Result Details in Path Details Pane

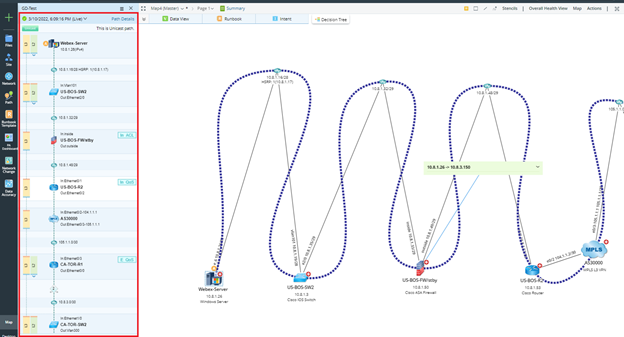

Viewing Path Result in Path Result Pane

The Path Result pane shows the status, the traffic information and Technology Tag about a path hop by hop.

Path Status

There are two types of path result status:

▪Succeeded: all full paths are calculated successfully.

▪Failed: all full paths are calculated unsuccessfully.

Traffic Information

The traffic information in the Path Result pane includes:

▪The traffic flow diagram of a path from the source to the destination.

▪Path types (including L2 Path, L3 Path, and Overlay Path). A Path may contain several types of paths at a hop. To view the result of a path type, click it to display the corresponding path on the map.

▪Incoming and outgoing traffic interfaces at each hop.

Technology Tag

The Technology Tags show the network technology checked by the path discovery logic.

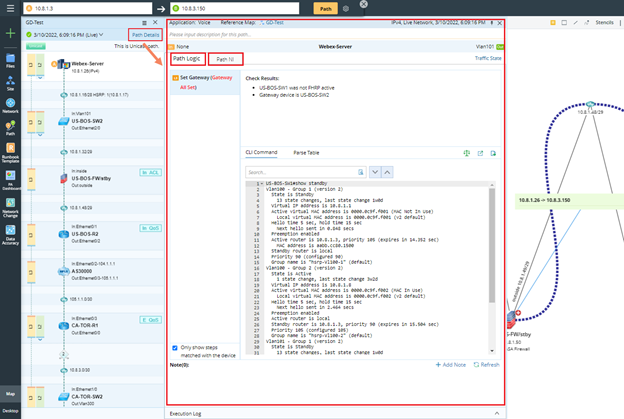

Viewing Path Result Details in Path Details Pane

The Path Details pane shows the details of path results based on the following categories:

▪Path Logic Pane: Show the data used in Path Discovery and allow you to write notes for each hop of the Path.

▪Path NI Pane: You can define Path NI, execute Path NI, and view its results to help you troubleshoot a path.
