Prerequisites: The discovery and benchmark of your NSX-V network has been completed. See Discover NSX-V Network in NetBrain Domain for more details.

The system organizes the NSX-V network resources in the Network pane based on NSX components. Follow the steps below to view the discovered NSX components.

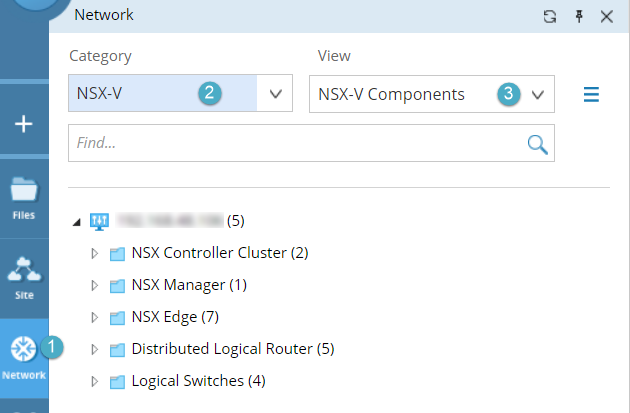

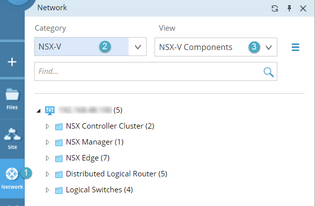

1.Click Network on the taskbar.

2.Select NSX-V from the Category list, and then select NSX-V Components from the View list.

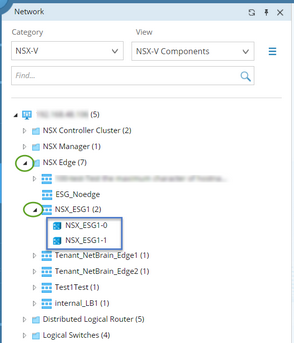

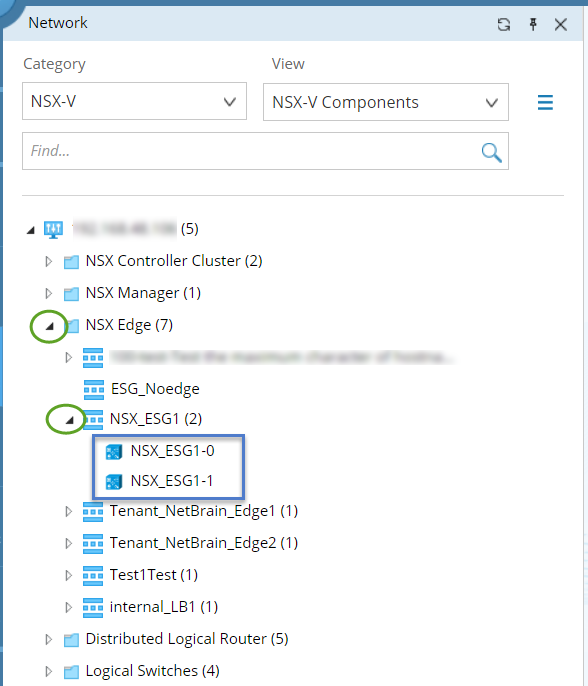

3.Expand a component to view the NSX-V node, such as Edge and its appliances.

4.View Context Maps and Details of an NSX Node.
