Define Which Member NIs to be Executed

If you select Network Intent Cluster as the Type in basic settings:

For NIC diagnosis, you can filter the member NIs to be executed.

Example: You may not run all member NIs if there are many BGP devices in your network. Instead, you may want to run the member NIs for the device(s) related to this Incident.

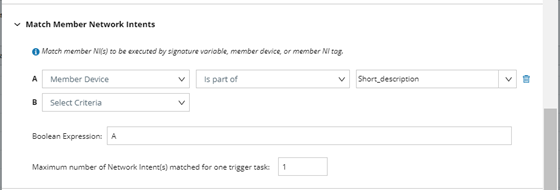

To define a filter:

1.Select a variable. (signature variable of NIC, member device, and member Network Intent Tag)

2.Select an operator. (contains, matches, is part of, in the same subnet as)

3.Select and manually input the Incident Type.

You can combine multiple simple filters with the standard Boolean AND/OR operations.

Note: You may set Maximum Network Intent Matched for One Trigger to be a reasonable number to protect the system.
