The system supports end-to-end path calculation in a hybrid/multi-cloud environment, and you can analyze the traffic flow between two endpoints.

1.Click Path on the search bar.

2.Enter the IP address of endpoint A in the Source field and the IP address of endpoint B in the Destination field.

3.By default, the system calculates two-way paths. To change the path direction, select the icon or the icon.

4.The related gateways will be auto-identified. If a device has multiple gateways, you can select the correct one from the Gateway list.

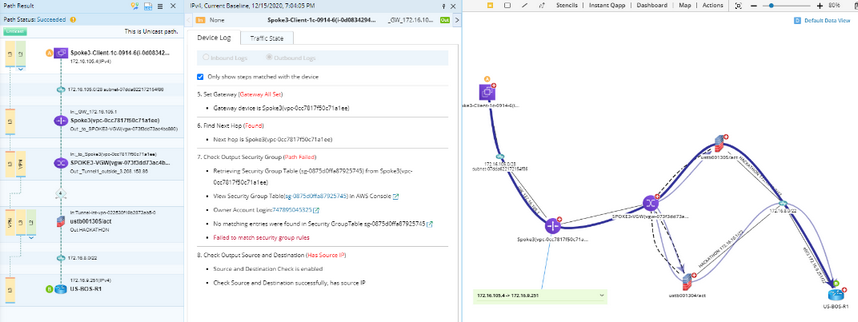

5.Click Path to start calculating. Then you can view the diagrammed path on the map with a detailed summary log (in the left pane).

Tip: For more information about hybrid/multi-cloud path, please refer to Feature Summary - Public Cloud Support.

Create Application Path

Your application may consist of web tier/application tier/database tier, therefore you may want to create an application to include multiple paths for different applications. NetBrain path browser can help you create applications and include the corresponding paths.

Tip: For more information about how to use the application manager to create and manage paths, please refer to Organizing and Verifying Paths in Application Manager

Tip: For more information about AWS/Azure Application Path, please refer to Feature Summary - Public Cloud Support.
