After calculating a path, you can view the status and result of the path:

▪View Path Result in Path Result Pane

▪View Path Result Details in Path Overview Pane

Viewing Path Result in Path Result Pane

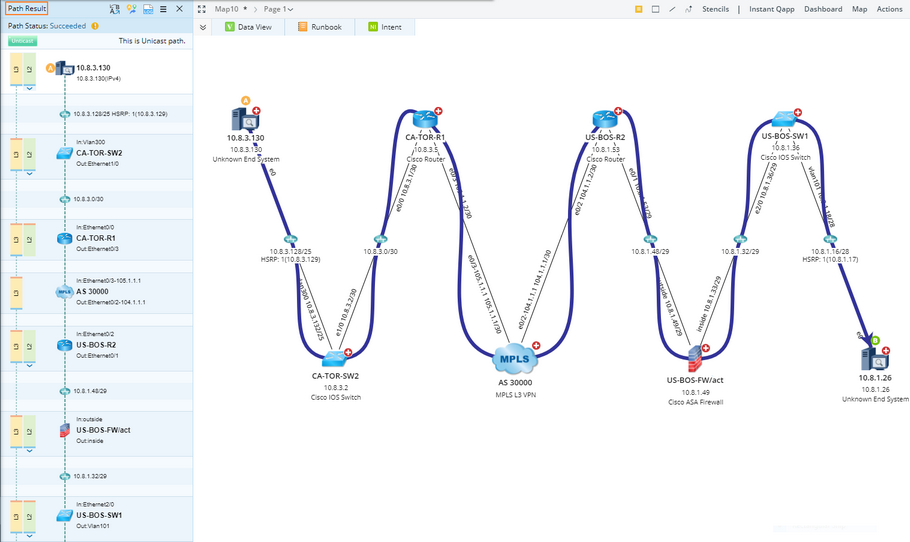

The Path Result pane shows the status and the traffic information about a path hop by hop.

Path Status

There are three types of path result status:

▪Succeeded: all full paths are calculated successfully.

▪Failed: all full paths are calculated unsuccessfully.

▪Succeeded : L3 paths are calculated successfully but L2 paths are calculated unsuccessfully.

Traffic Information

The traffic information in the Path Result pane includes:

▪The traffic flow diagram of a path from the source to the destination.

▪Path types (including L2 Path, L3 Path, and Overlay Path). A Path may contain several types of paths at a hop. To view the result of a path type, click it to display the corresponding path on the map.

▪Incoming and outgoing traffic interfaces at each hop.

Viewing Path Result Details in Path Overview Pane

The Path Overview pane shows the details of path results based on the following categories:

▪Full Path: A full path means a complete path from the source to the destination.

▪Segmented Path: A segmented path means the path between the outgoing interface of a device and the incoming interface of the next-hop (L2 or L3) device.
