The Data View node is used to monitor devices and device interfaces by visualizing variable values on a map. It can highlight variable values in different colors and output alert messages when the variable values reach the predefined threshold.

Configuring a Data View Node

1.Point to the upstream table node that you want to analyze the variables.

2.Click the icon and extend a Data View node from the table.

3.At the Data View node, click Select Data Unit. The Select Data View dialog opens. Define data units to display based on the Table type:

Device Data Table
Global Data Table

4.Specify the display positions for each variable on a map.

5.Define Alert for variables.

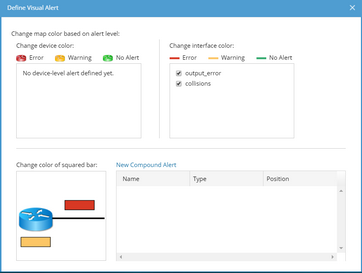

How to define visual alerts?

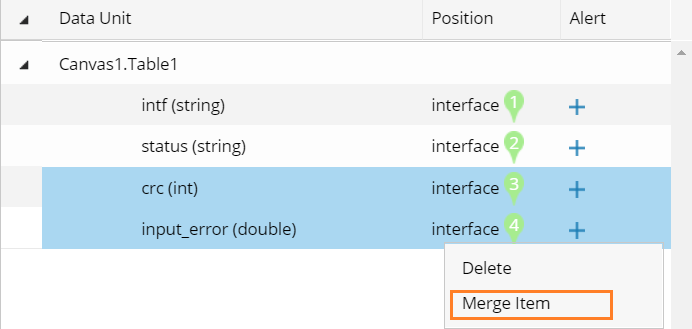

How to display multiple monitor items in one position?
