The system supports end-to-end path calculation in hybrid/multi-cloud environment, and you can analyze the traffic flow between two endpoints.
2.Enter the IP address of endpoint A in the Source field and the IP address of endpoint B in the Destination field.
4.The related gateways will be auto-identified. If a device has multiple gateways, you can select the correct one from the Gateway list.

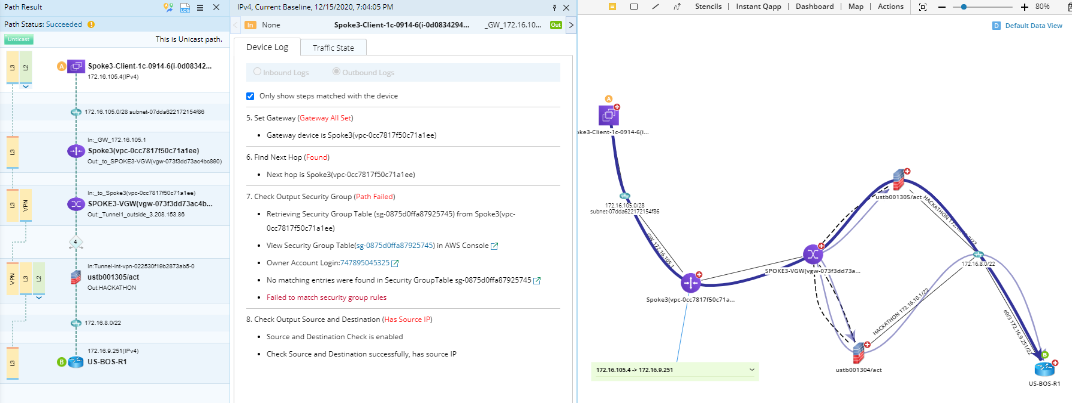

5.Click Path to start calculating. Then you can view the diagrammed path on the map with a detailed summary log (in the left pane).

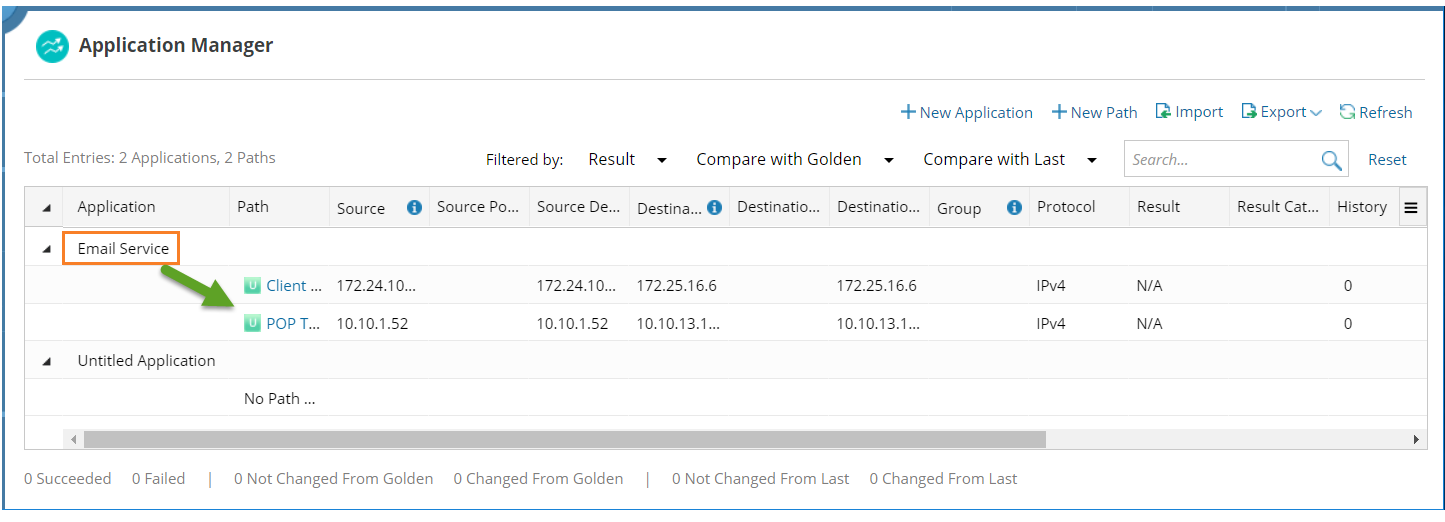

Your application may consist of web tier/application tier/database tier, therefore you may want to create a application to include multiple paths for different applications. NetBrain path browser can help you create applications and include the corresponding paths.
