Applying Data View to Visualize More Fabric Data

After discovering your ACI network, you can visualize the network data on a map, including topology, IP address, and configurations. Besides, you can apply a data view template to visualize more information on the map.

Example: Apply a built-in data view template Infrastructure View to visualize rich fabric data.

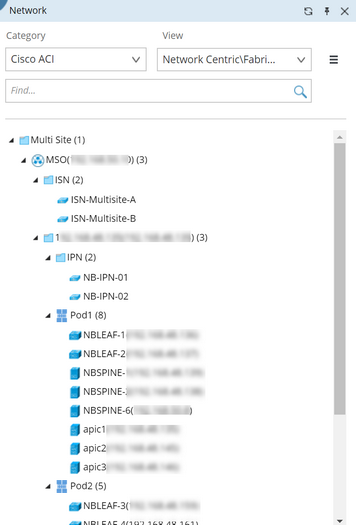

1.In the Network pane, select APIC Domain under the Cisco ACI > Network Centric > Fabric POD View.

2.In the Context Maps pane of the APIC Domain, click Open Map.

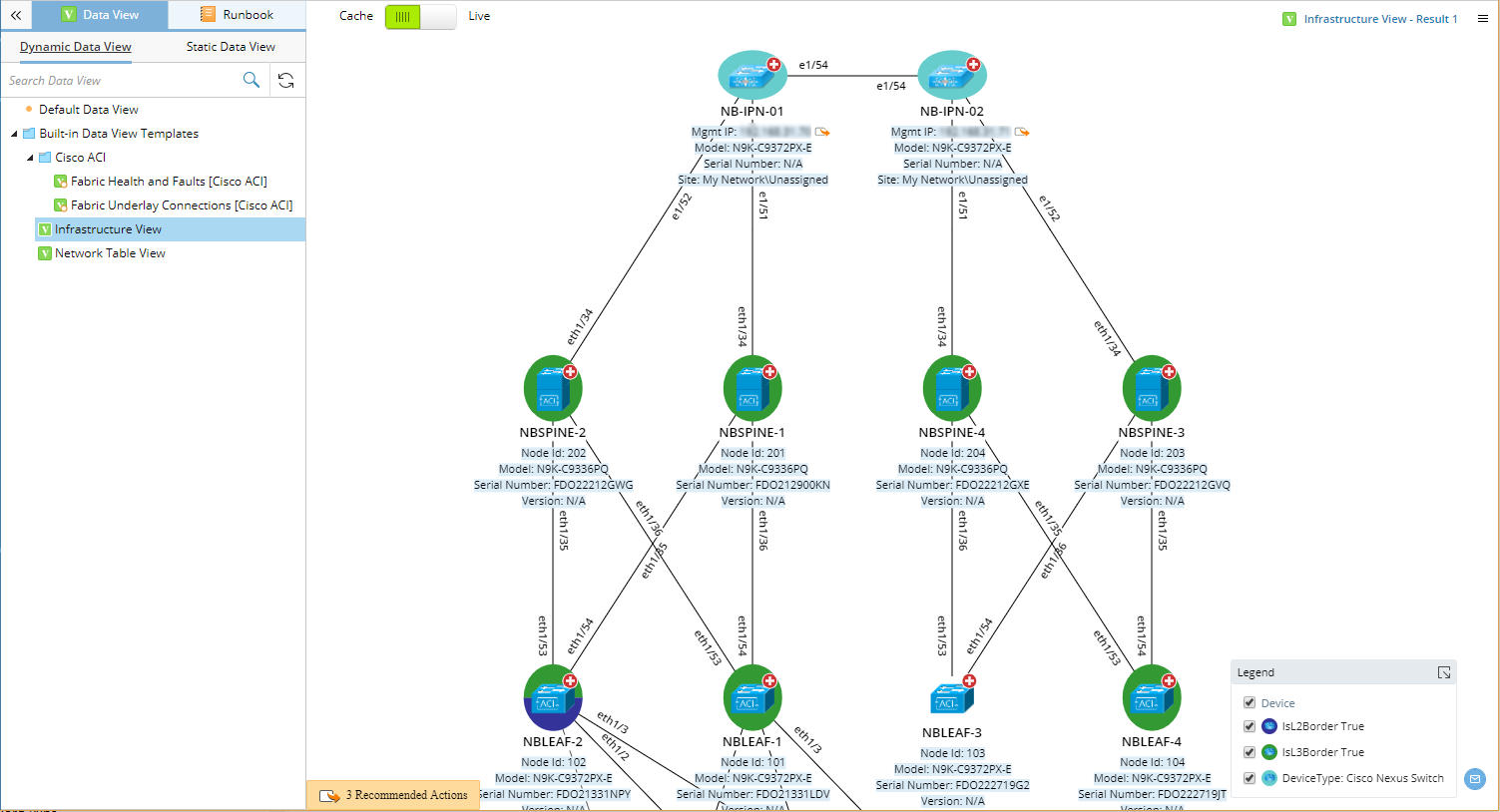

3.On the map page, double-click Infrastructure View in the Data View pane to apply it to the map.

Note: Proper configuration of Benchmark is required to use built-in data views. Refer to Auto-Updating ACI Data in NetBrain through Benchmark for more information.

Tip: Besides using the built-in data view templates for ACI networks, you can create a data view template based on your needs. See Creating a Data View Template for details.
