Map Data View Manager is used to centralize and manage all map data views saved within a map page.

Browsing Map Data Views

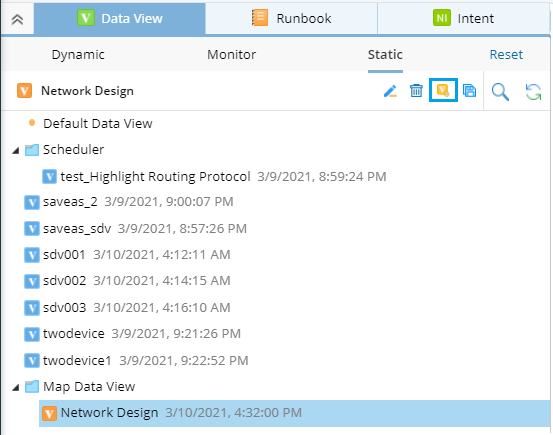

1.After applying a map data view to a map, move the mouse to the following area and click the icon to open the Map Data View Manager page.

2.Click a map data view group in the left pane, and all included devices are listed under the Details tab. By default, the value of each data unit of a device is displayed on its position. You can click Show Properties to only show the data unit name. See Browsing Static Data Views in Data View Manager for more details.

3.Select a data view in the left pane and click the Updated Records tab to view the updated records of the data view.

Deleting a Map Data View

To delete a map data view, right-click it in the left pane and then select Delete from the drop-down menu. See Deleting a Static Data View for more details.



See also:

▪Data View Category

▪Managing Map Data
