Search One-IP Table and Map Devices
One-IP Table records all IP addresses and their connections in the current domain, including the connectivity between L2 interfaces, Layer 3 interfaces and switch ports. The one-IP table is generated based on ARP and MAC tables when the system builds Layer 2 topology. The One-IP table in the function portal can be used to search and map devices.

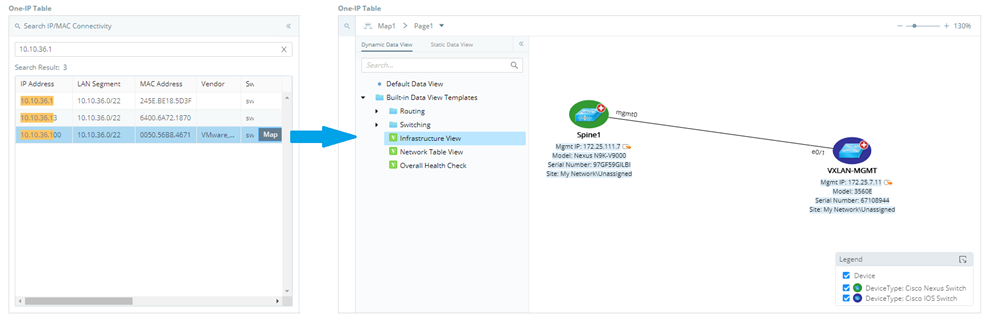

- Enter an IP address to search for a device, and then click Map to map out the target device and its connected neighbors.
Tip: You can also enter MAC/LAN/DNS names to search devices.
- Apply more layers of data views to view more data if needed.
Difference Between One-IP Table in the NetBrain System and Function Portal
The functions of the shared One-IP table in the function portal have some differences compared with those in the IE Workstation in the following aspects:
| Feature | Sub-feature | Is in NetBrain System | Is in Portal |
| One-IP Table | Search One-IP table entries | √ | √ |
| Map One-IP table entries (map single and multiple entries at a time) | √ | √ | |
| View All One-IP table entries | √ | × | |
| Export One-IP table | √ | × | |
| Resolve DNS | √ | × | |
| Delete Entries | √ | × |
