Ping

You can use Ping to validate the connectivity between a Front Server and a device or two devices within a domain.

1. On a map, select Ping from the right-click menu, or select Actions > Ping from the map toolbar.
2. In the From field, enter a hostname GW2Lab to specify the source device. You can also click on the text box to select a Front Server or a device in the domain.


   Tip: When you select Auto Front Server, the Front Server specified in the Shared Device Settings of the destination will be used. All configured Front Servers are auto-populated in the list. To use another Front Server, select one from the list.

   Tip: When you select a device, its management interface is automatically used as the ping source. You can select another interface from the list as the ping source.

3. In the To field, enter a device hostname BJ*POP to specify the destination device. You can also click on the text box to select a device in the domain.

4.  (Optional) Click the icon to configure the following advanced settings, and click OK.

• Timeout — the maximum time of ping packets to wait for a response.
• Package Size — the size of ping packets to be processed before the results and averages are calculated.
• Package Count — the number of ping packets to be processed before the results and averages are calculated.
• Set no fragment flag in package — specify whether to include the fragment flag when sending packets.

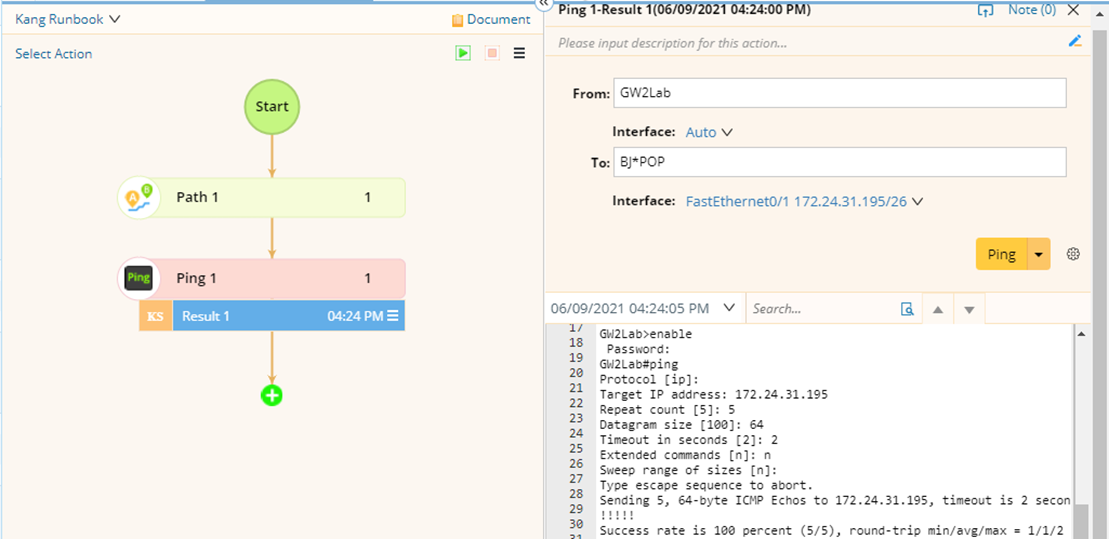

5. Click Ping to start the action, and then view the result.




   Tip: To save an action node and its input for reuse, point to it and click the  icon to select Save as Favorite.
