Viewing and Understanding Execution Tree

Opening Execution Tree

1. Go to  on the desktop and search Preventive Automation Console, select the option from the results to open it.

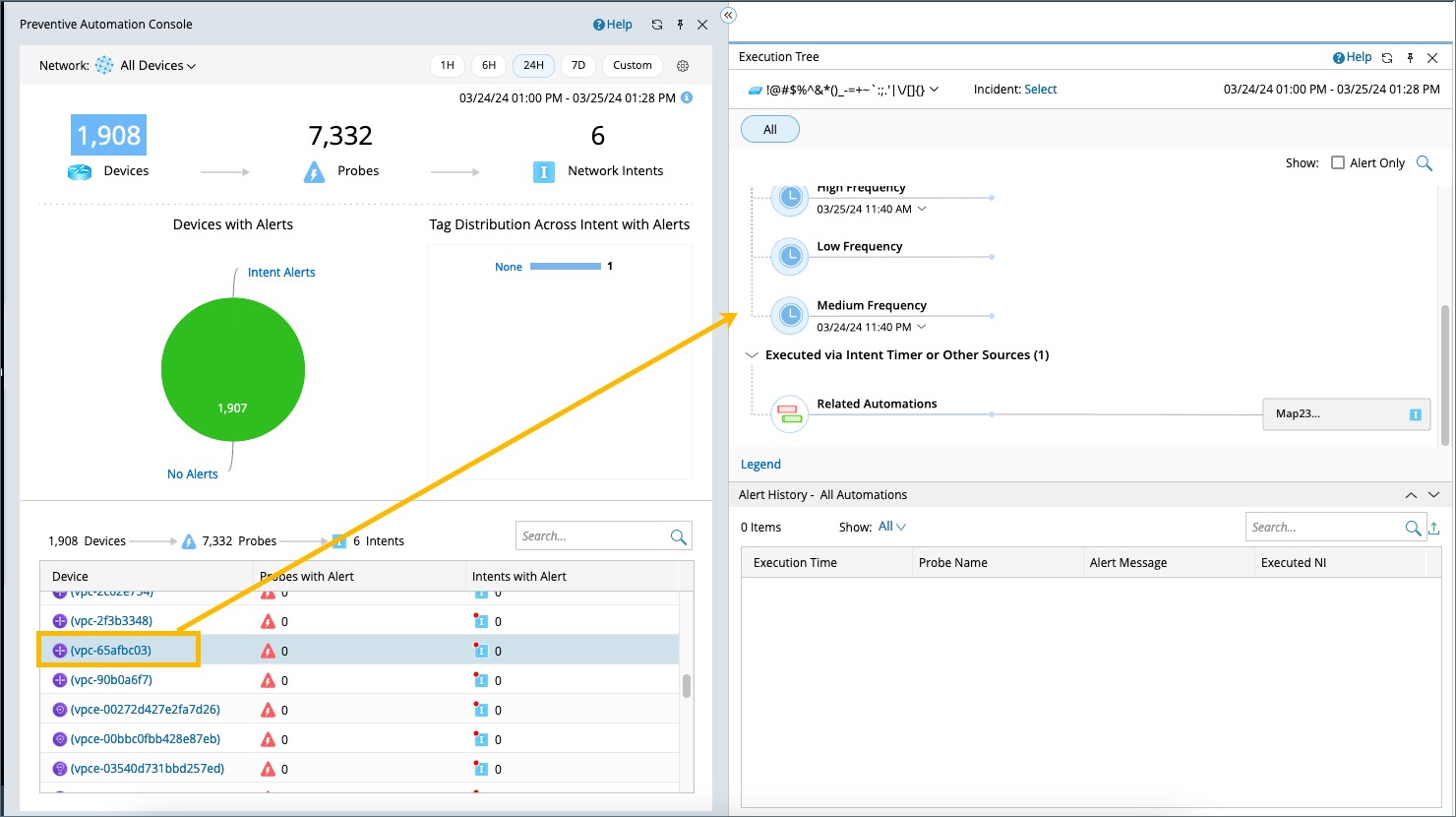

2. Click a device in the device list, and the Execution Tree will be activated.




Note: The Execution Tree displays the preventive automation details of the selected device.

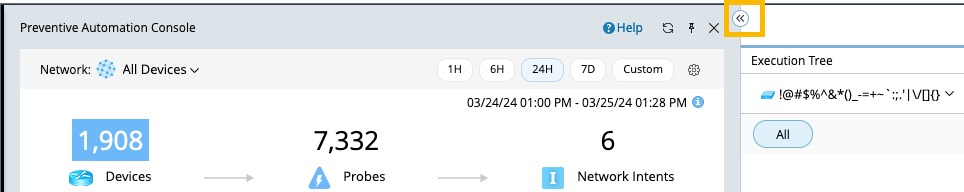

Tip: To view the Execution Tree side by side with the map, you can click to hide the PA dashboard.

Viewing and Understanding Execution Tree

• The Execution Tree will demonstrate all the probes and triggered intents for the selected device.



#	Meaning
1	You can select the latest or the historical execution results of the probe from the drop-down menu.
2	The tags of the network intent can be used to narrow down to the interested network intents.
3	You can quickly switch between different devices by using the drop-down menu.

• The lower window shows the alert history during the selected time range.

Tip: You can click on the probe icon and network intents on the Execution Tree, and the results in the Alert History window will be filtered based on your selection.
