View Meraki Network by MERAKI Devices

Meraki devices are classified into Meraki switch, AP, firewall and Z3 device. To view the details of a node, proceed with the following steps:

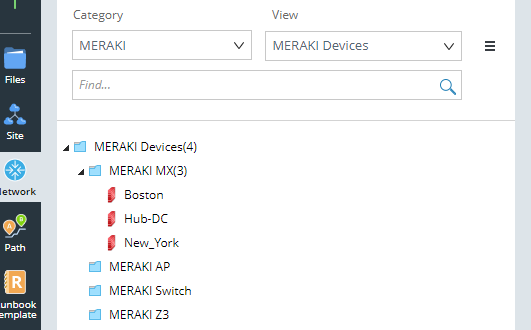

  1. Select Network in the left pane of your NetBrain desktop.
  2. In the Network pane, select MERAKI in the Category field.
  3. In the View field, select MERAKI Devices.
  4. Expand the MERAKI Devices node to view more information.
    Graphical user interface, text, application, email Description automatically generated
    Information Tip: The number next to each node indicates the number of its child nodes.

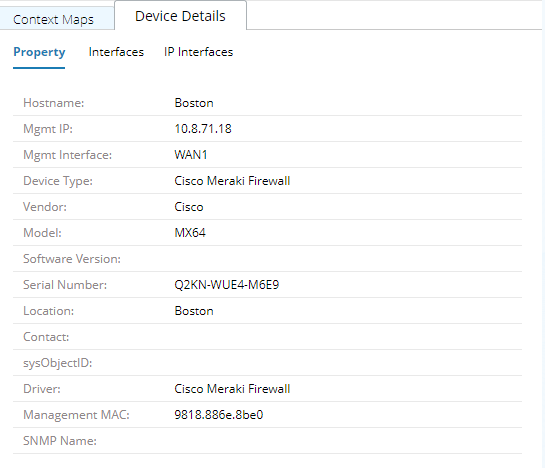

  1. Select a node and click Device Details pane to view the node’s detailed property, interface and IP interfaces.
    Graphical user interface, text, application Description automatically generated
