Device and Interface Notes

You can define the display conditions, title, and content of the notes.

The entrances of defining note:

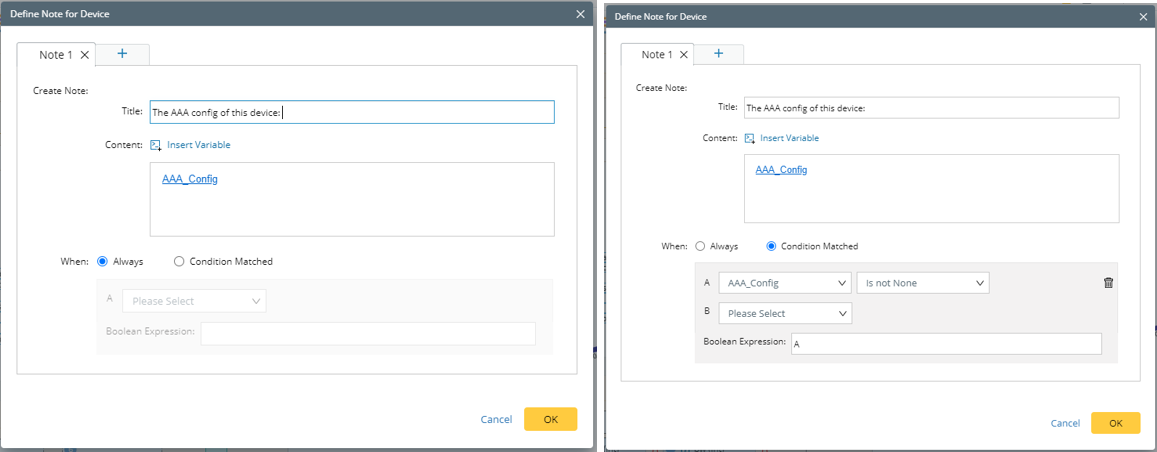

• Define Device Note:

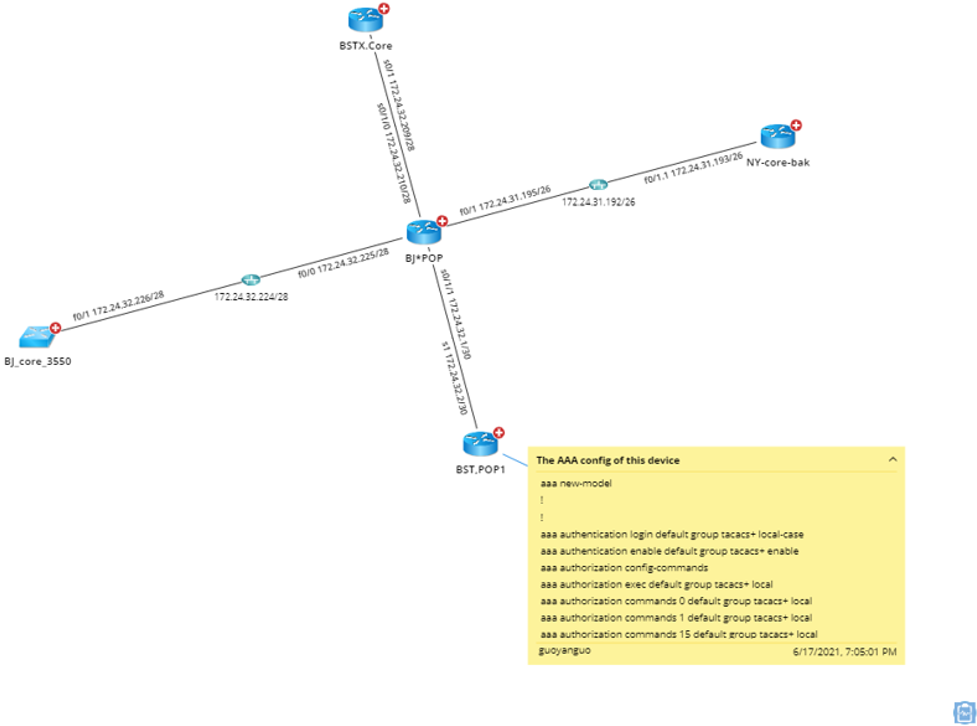

  • When Always: With the above device note definition, the note will always be shown on the map.
  • When Condition Matched: With the above device note definition, the note will be shown on the map if the specified condition matched:

• Define Interface Note:


  • When Always: With the above interface note definition, the note will always be shown on the map.
  • When Condition Matched: With the above interface note definition, the note will be shown on the map if the specified condition matched:
