Define Match Pattern

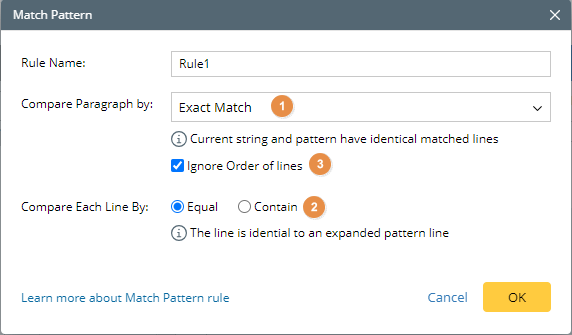

You can configure the control parameters of the current Match Pattern as follows.
- Rule Name: The rule name is generated automatically, and users can modify it.
- Compare Paragraph by: Compare each line of two paragraphs and calculate match results based on the selected options.
- Exact Match: Current string and pattern have identical matched lines.
- Contain All Pattern: Current string contains all pattern strings and more.
- Part of Pattern: Current string is part of the pattern string.
- Compare Each Line by: Decide whether to exact match or not at line level.
- Ignore Order of lines: Whether to ignore the line order when matching.
Click Learn more about... to see the match pattern rule, and then compare data with patterned text in baseline to know how to use the match pattern.
Please note that you can also directly define the match pattern rule in the pattern file by adding a control line at the end of the pattern line, such as //##{paragraph:contain,line:equal,ignore_order:true}. The settings in pattern file is prior to the UI configurations.
| Parameter | Value |
|---|---|
| paragraph |
|
| line |
|
| ignore_order |
|
For Example: Edit a golden configuration with a control line in ADT.
Match Pattern Rule

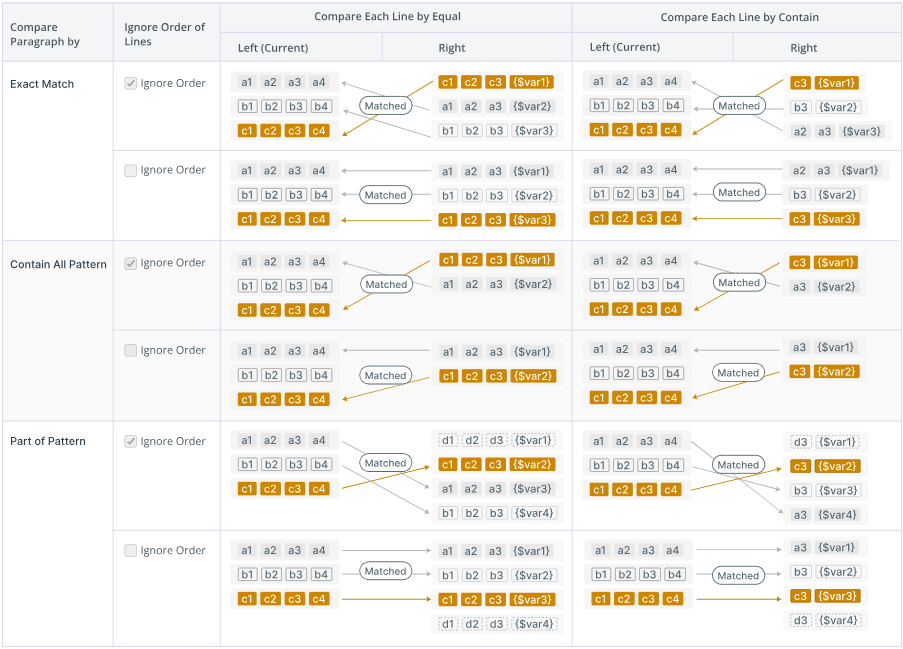

According to the Match Pattern definition, there are different logic combinations, and there will be different comparison results. The following table lists the sample of compare conditions that are recognized as Matched.
Data Comparison with Patterned Text in Baseline
To compare the device data against a baseline data with some texts that need to be ignored in the comparison, operator Match Pattern will be used while defining the diagnosis.
For the patterned text in ADT, the $var and $mstring are supported. $var can only replace one string by default. If you need to use the patterned text to match multiple strings, you can configure $mstring to match multiple strings. Moreover, the syntax "enum" is also supported for the text rules defined in ADT.
| Compare Paragraph by | Ignore Order of Lines | Left (Current) | Right (Pattern) | Results |
| Compare Each Line by Equal | ||||
| Exact Match | Checked | a1 a2 a3 a4 | a1 a2 a3 {$var3} | True |
| a1 a2 {$var3} | False | |||
| a1 a2 {$var3} {$var4} | True | |||
| a1 a2 {$mstring:var3} | True |

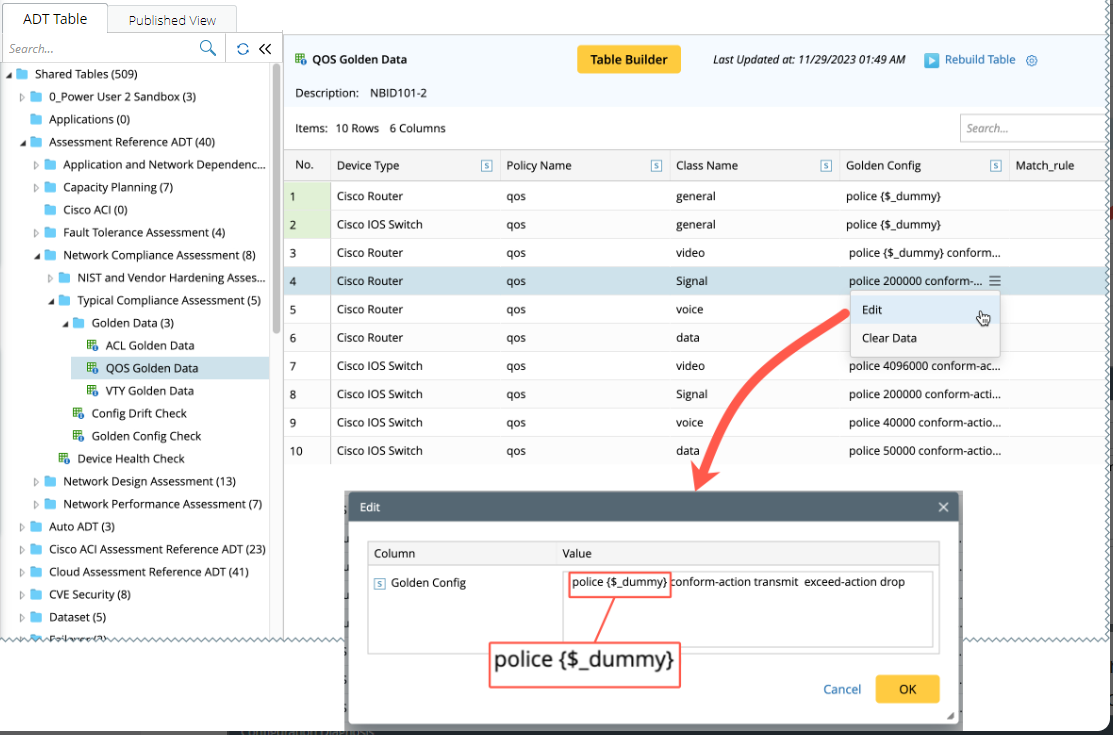

Example: Compare configlet data of the device US-BOS-R1 with the golden data (ADT: QOS Golden Data, column Golden Config).
- Go to the ADT QOS Golden Data in the Automation Data Table Manager.
- In the column Golden Config, edit the text replacing all the numbers next to police using {$var} (such as {$_dummy}).
- In the intent diagnosis, select the operator Match Pattern and define the match rule to recognize this format. The system will ignore this format according to the definition and determine whether the data matches.
