Use Chatbot to Execute Automation

End users can interact with chatbots defined by power users to diagnose network issues without help from a human agent.

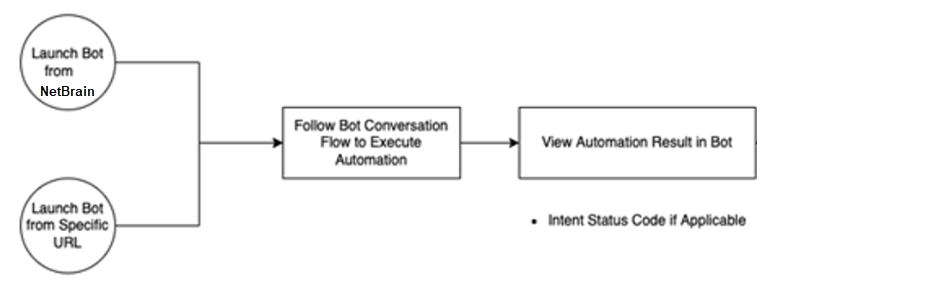

  1. Two ways to launch the bot:
    • From the desktop, select   from the taskbar.
    • Receive the bot URL and open it in a web browser, then login to the bot with the NetBrain or portal credentials and start to interact with it.
      Each chatbot has its unique URL. For example, http://192.168.31.46/bot/10000g.
  2. View the welcome page, which includes the chatbot purpose defined by the power user. Click START to go to the chat console.

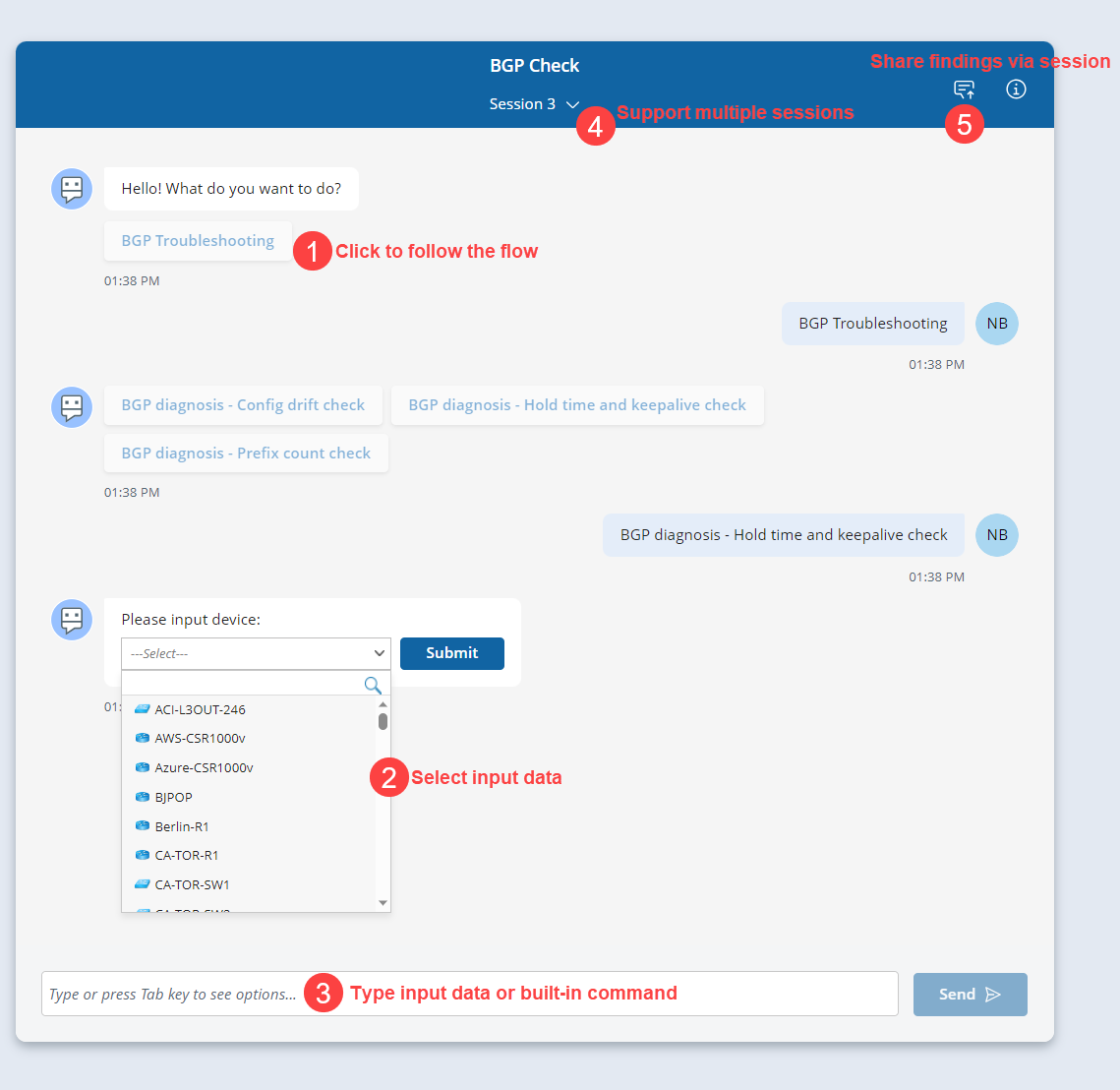

  3. Start interacting with the bot.


    #
    Operations
    Details
    1

    Click the button to follow the conversation flow.

    You can also enter the button name in the input box.
    2

    Select from the drop-down list to interactively provide input.



    Depending on the power user's configuration, you will make a single selection, or multiple selections.

    Information

    Note:

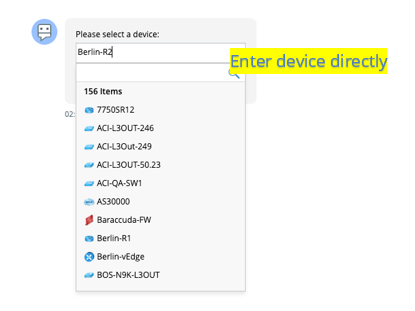

    -You can enter the input in the drop-down box directly if the bot owner enables this option.

    -The custom input for devices is case-sensitive.

    3

    Enter input data or built-in commands in the input box.



    4

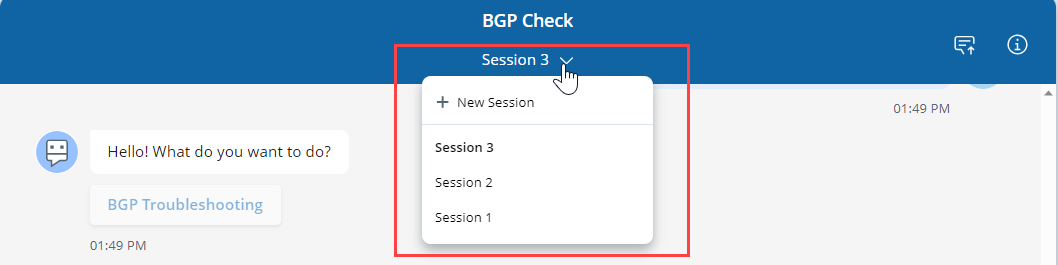

     You can view previous sessions and start a new session at any time.


    Every chat session will be saved automatically.


    5

    Publish the current session with important findings to others for collaboration.



  4. View the automation result in the bot.
