Set Up MPLS Cloud

Note: To display the provider’s MPLS network in the NetBrain system, you must set up the MPLS cloud by following the MPLS configuration instructions. If MPLS visibility is not required, you can skip this topic.

NetBrain GCP support requires excluding all the Google Cloud Router devices connected with MPLS Cloud because the Cloud Router in GCP is in the control plane and should not involve the data plane.

When configuring GCP support in NetBrain, make sure to exclude all Google Cloud Router devices connected to the MPLS cloud. Cloud Routers operate in the control plane and should not be included in data plane analysis.

Follow these steps to exclude all the Google Cloud Router devices:

1. In the Domain Management page, click  and open Data Accuracy Resolution.

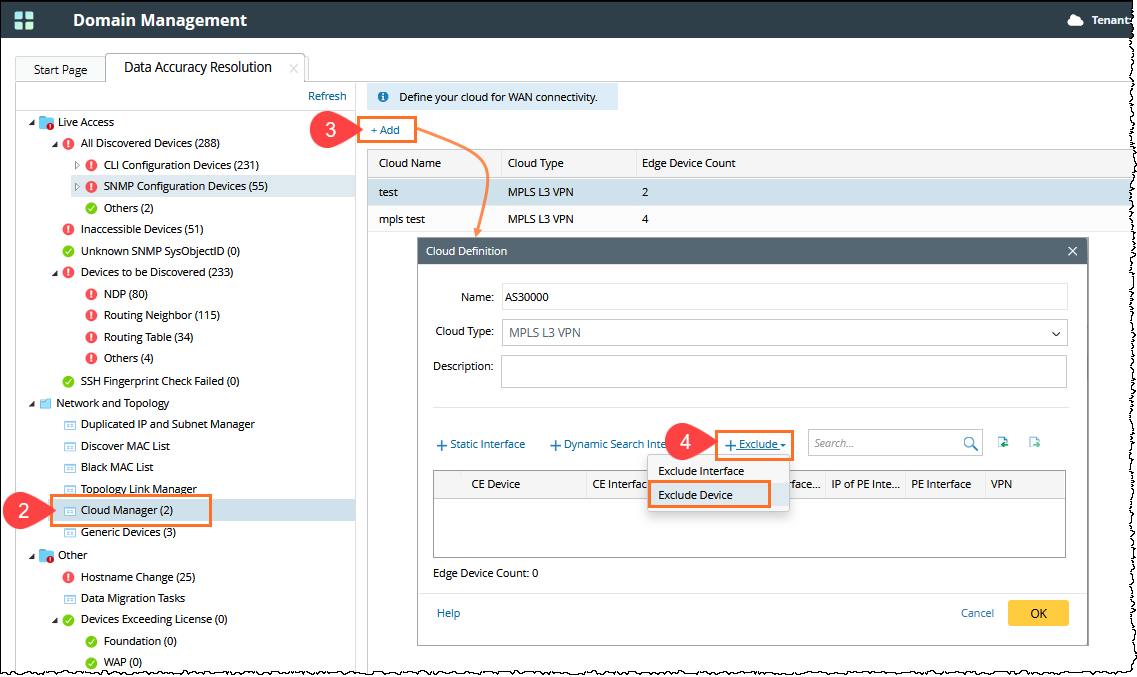

2. Open Cloud Manager from the Network and Topology folder.
3.  Click +Add to open the Cloud Definition window.
4. Click Exclude and select Exclude Device from the dropdown.


5. Select the Google Cloud Router from the dropdown menu, and click the icon to move all selected devices to the right pane.
6. Click OK to finish.



   Note: Failure to exclude all the Google Cloud Router devices connected to MPLS may cause the path calculation issue. If you have any issue creating MPLS Cloud in the NetBrain System, contact NetBrain Support.
