Set Up API Server

Information Note: Before setting up your API server, read NetBrain Requirements for API Server Setup first.

Once you have completed the steps above, follow these steps to set up a NetBrain API Server:

  1. Click in your NetBrain desktop and select API Server Manager from the dropdown menu.
  2. Click + Add API Server to initiate the addition of a new API server.

  • Server Name: a unique name.
  • Description: an optional field to describe this server.
  • API Source Type: select Microsoft Azure.
  • Access Method: select Service Principle.

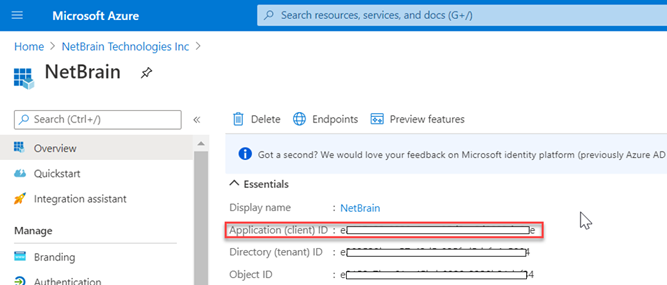

  • Endpoint (Client/VM ID): copy/paste the ID from your registered App.
    Graphical user interface, text, applicationDescription automatically generated

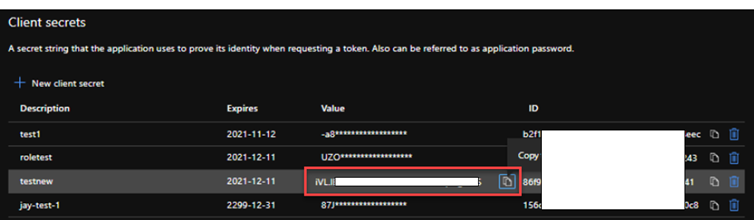

  • Client Secret: copy/paste the value from created client secret within your registered App.

A screenshot of a computerDescription automatically generated with medium confidence

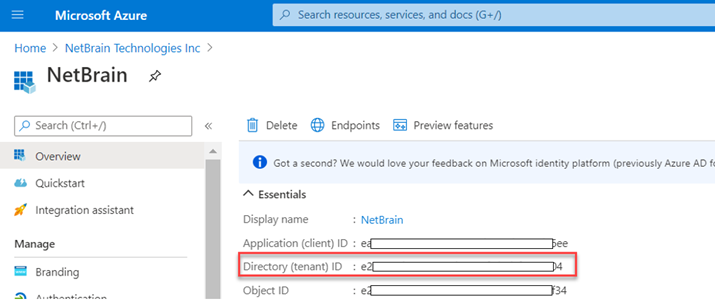

  • Directory (Tenant) ID: copy/paste the ID from your registered App.
    Graphical user interface, text, application, emailDescription automatically generated
  • Front Server: select one front server which can access Azure.

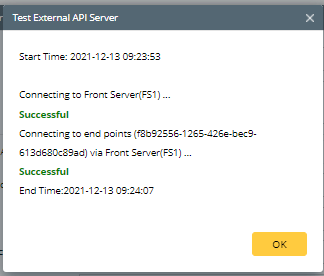

  1. Click Test to verify that the API server works.
    Graphical user interface, text, application Description automatically generated

Once the API server is successfully verified and saved, you can proceed to Discover Azure Resources.
