Search for Maps

  1. Enter one of the following search elements in the search bar:
  • Map name
  • Map page name
  • Device hostname or management IP address
  • Interface name or IP address
  • Map note
  1. Press Enter. The search results are displayed with the matched keyword highlighted.
    Information

    Note: Only the Common Map supports search functionality. You cannot search within the other maps in the list to find specific information.

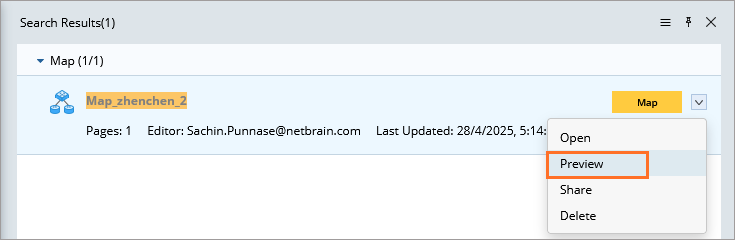

  2. Point to a map result and then click the  icon and select Preview to preview the map.

    Information Tip: You can open the map using the "Map" button or click Open from the dropdown menu .
    Information Tip: To share the map, point to the map entry and click the  icon to select Share.
