Draw Devices and Group on Map

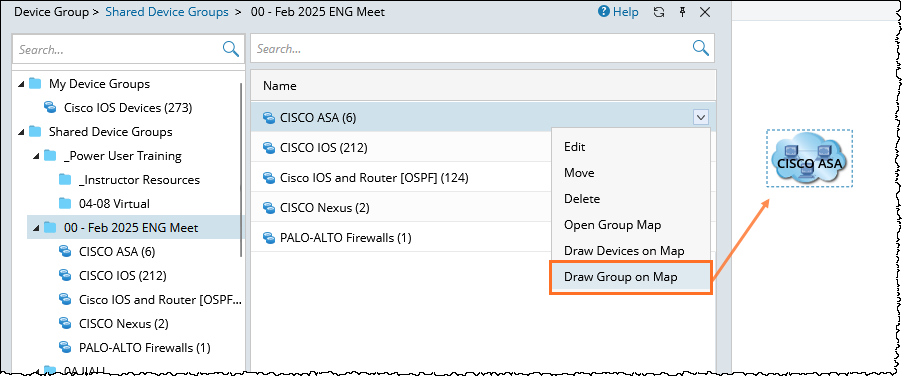

Draw a Group on a Map

1. In the Device Group pane, point to the target device group.
2. Click the  icon to select Draw Group on Map. A Device Group icon will be added to the current map.


3. You can double-click the device group icon on the map to open the auto-generated device group map.
Related topic:
• Device Group
• Update a Map

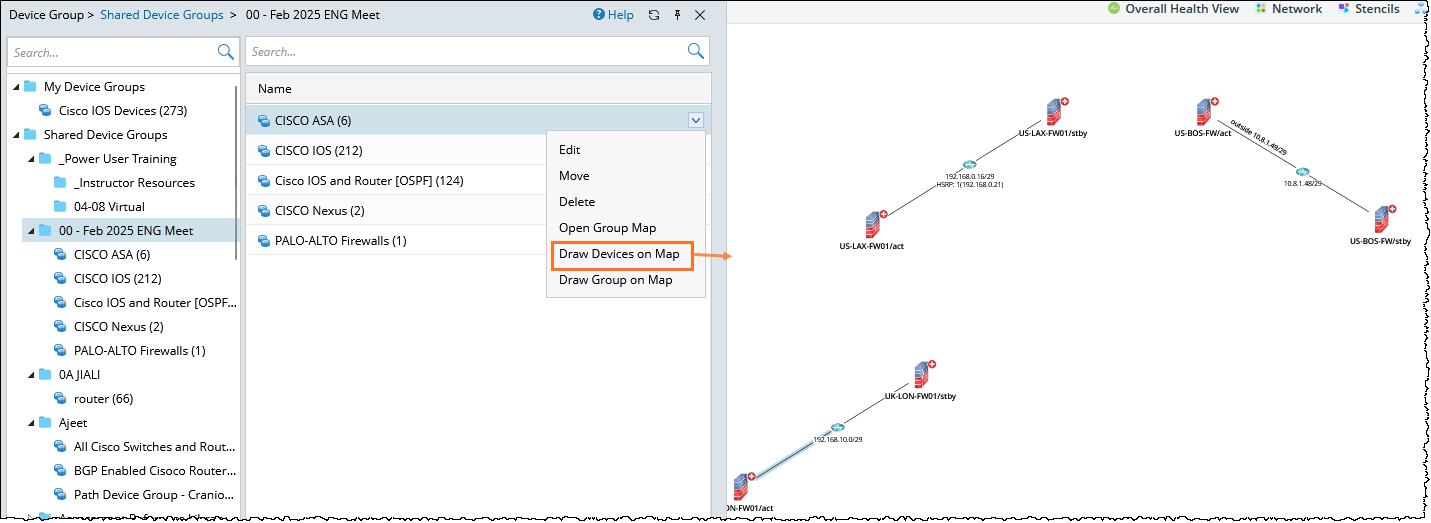

Draw Devices on Map

1. In the Device Group pane, point to the target device group.
2. Click the icon to select Draw Devices on Map.
3. Devices will be added to the current map. If no map is opened, the system will automatically create a map for those devices and show L3 topology links by default.
