Lookup Relationship

Through the lookup relationship, different Report Objects are related via key Report Fields so that multiple Report Objects can be used in the same report.

The lookup relationship is a one-way relationship for these report objects. Here is the lookup relationship for the report objects.

• Device Category
• Intent Category
• Application Category
• Change Management Category
• Site Category

Device Category

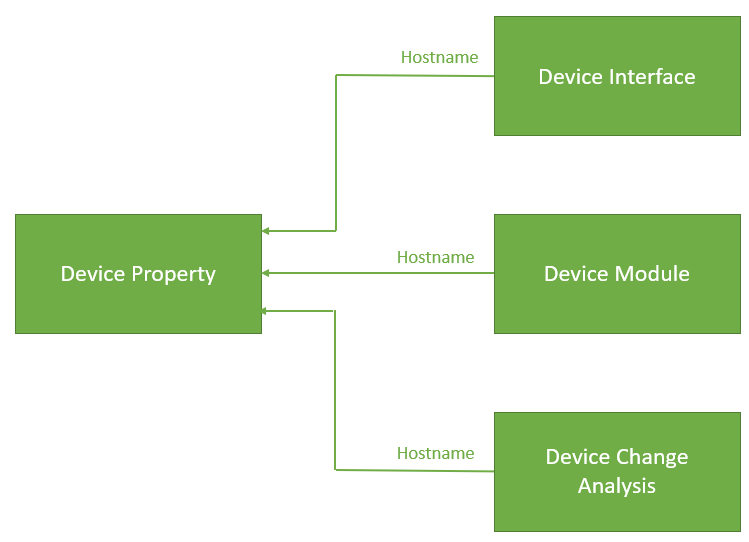

In the device category, Device Interface, Device Module, and Device Change Analysis look up to Device Property via the report field Hostname.

Intent Category

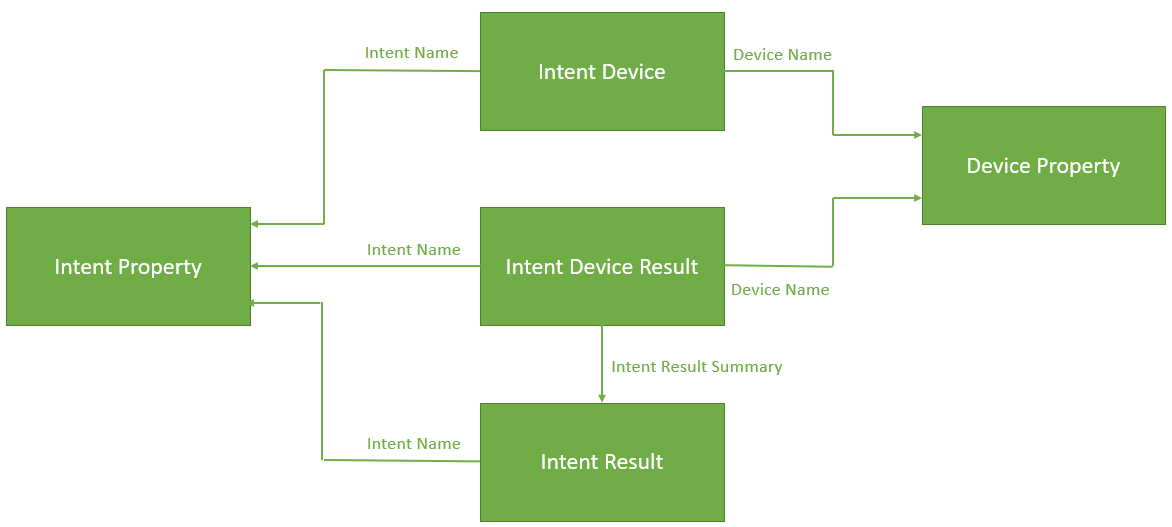

In the intent category, the lookup relationship:

• Intent Device, Intent Device Result, and Intent Result look up to Intent Property via the report field Intent Name.
• Intent Device, Intent Device Result look up to Device Property via the report field Device Name.
• Intent Device Result looks up to Intent Result via the report field Intent Result Summary.

Application Category

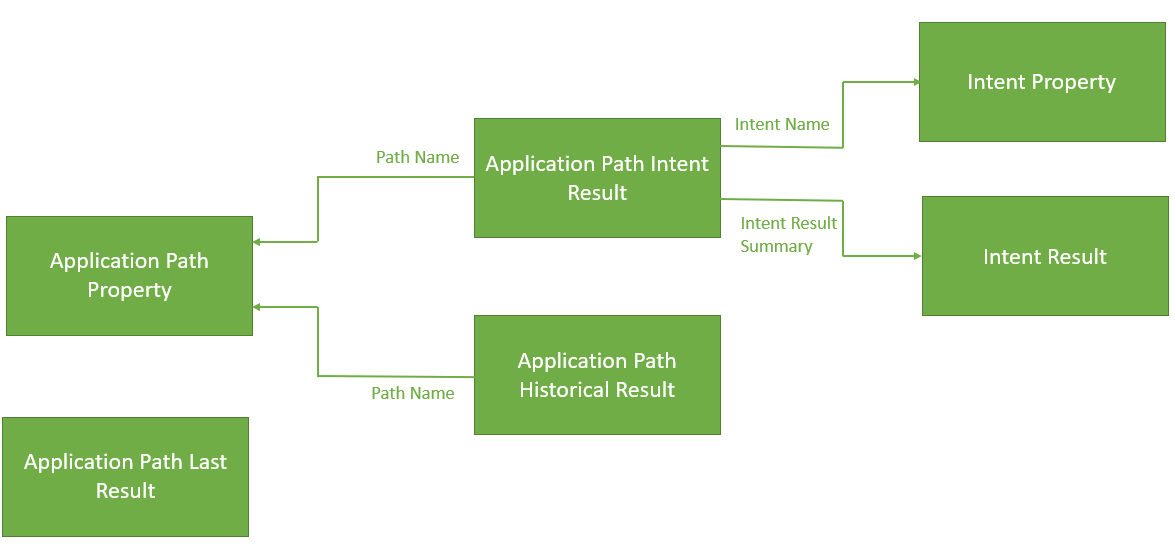

In the application category, the lookup relationship:

• Application Path Intent Result, Application Path Historical Result look up to Application Path Property via the report field Path Name.
• Application Path Intent Result looks up to Intent Property via the report field Intent Name.
• Application Path Intent Result looks up to Intent Result via the report field Intent Result Summary.
• Application Path Last Result do not have lookup relationship.

Change Management Category

 In the change management category, the lookup relationship:

• Change Management Implemented Device and Change Management Planned Device look up to Change Management Task via the report field Change Management Task Name.
• Change Management Implemented Device and Change Management Planned Device look up to Device Property via the report field Device Name.

Site Category

 In the site category, the lookup relationship:

• Site Member looks up to Site via the report field Site Name.
• Site Member looks up to Device Property via the report field Device Name.
