View Benchmark Task Results

It is essential to have a successfully executed system Benchmark to keep domain data updated as it not only collects live network data but also updates network topologies, re-calculates sites, rebuilds visual space, and updates maps.

You can view the task result, duration, configuration and data table retrieval success rate in the following provided Benchmark logs:

• Execution log — records the overall status of all subtasks, such as building topology and recalculating sites.
• Device Log — records the live access process for each device, including the data retrieval process.
• Plugin Log — records the plugin execution time and status.

Verify the following items in the View Result window:

• Check the task result and make sure all tasks are successful without any warnings.
• Check the duration to make sure the execution time is reasonable
• Check the start time and duration to ensure the Benchmark task does not overlap with other scheduled tasks. See recommended settings in frequency for details.
• Check the Configuration Retrieval Success Rate and resolve the devices with configuration retrieval failures.

• Check the Data Table Retrieval Success Rate and make sure there is no sudden change compared with previous tasks.

Data Table Retrieval Success Rate is the ratio of the count of data tables successfully obtained over the count of data tables that are tried to obtain.

Follow the steps below to browse benchmark logs:

1. Log in to the Domain Management page.

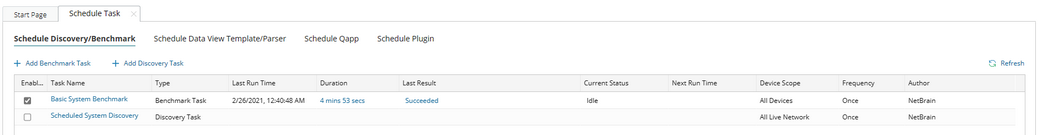

2. On the Domain Management page, click Schedule Task on the Start Page.



Tip: You can view the latest execution result of all benchmark tasks from the Last Result column. To view the detailed latest execution log of a benchmark task, click the hyperlink (such as Succeeded) in its Last Result column.

3. Right-click the target task entry and select View Result from the drop-down menu .

4. In the following dialog, all execution results will be listed.




Note: In the drop-down menu, you can export the logs and delete the execution result. Multi-select is supported.
