Example for Incident Merging

Define settings to merge incidents according to different scenarios.

These issues are common in a user’s 3rd party integrated system:

  1. The interface status of a device changes to a down state. If multiple interfaces on a device change to ‘down’ within 30 minutes, trigger automations and then merge their results into a single NetBrain incident.
  2. The BGP neighbor status on a device changes to down.
  3. Hosts become unreachable.
  4. CPU usage is too high on a device. Issues of high CPU usage occurring within 10 minutes are considered the same.

Define the settings based on the scenario.

  • Define a policy for issue 1.

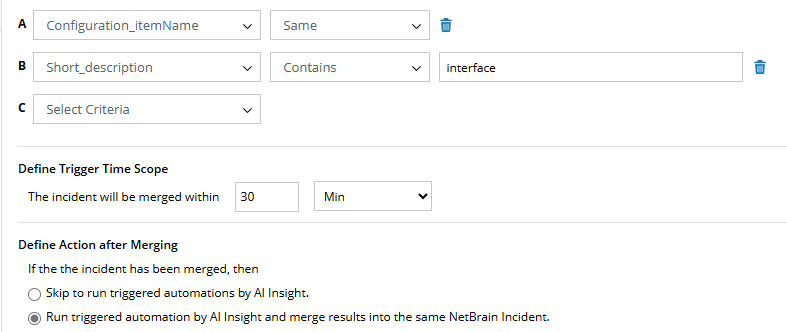

  1. Define a policy named Interface Down with these settings:

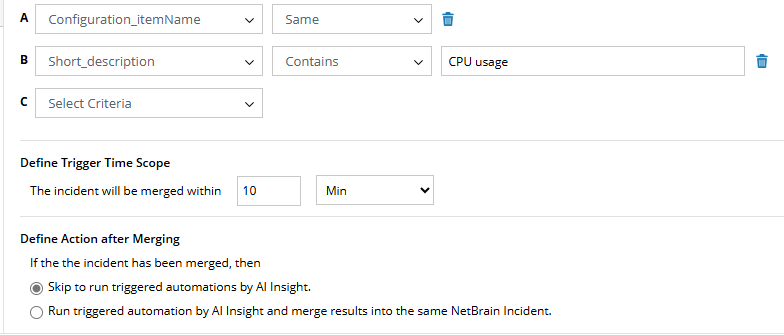

  • Define a policy for issue 4. To prevent redundant automation triggers, create a policy named CPU Usage is High with the following settings:
  • Each issue in 2 and 3 is distinct and independent, so the user doesn’t need to define policies for them.
