Create Table Parser from Auto Parser Mode

In Auto Parser mode, you can directly select to parse a table.

1. From the New menu, select New Parser.


2. Click the  icon to specify the parser name.
3. In the Select Data area.
   1. Define to retrieve the "show ip route summary" CLI command data on device US-BOS-R1 with Live data as the data source.
   2. Click Retrieve, and the retrieved data will be added to the Parser Input area.

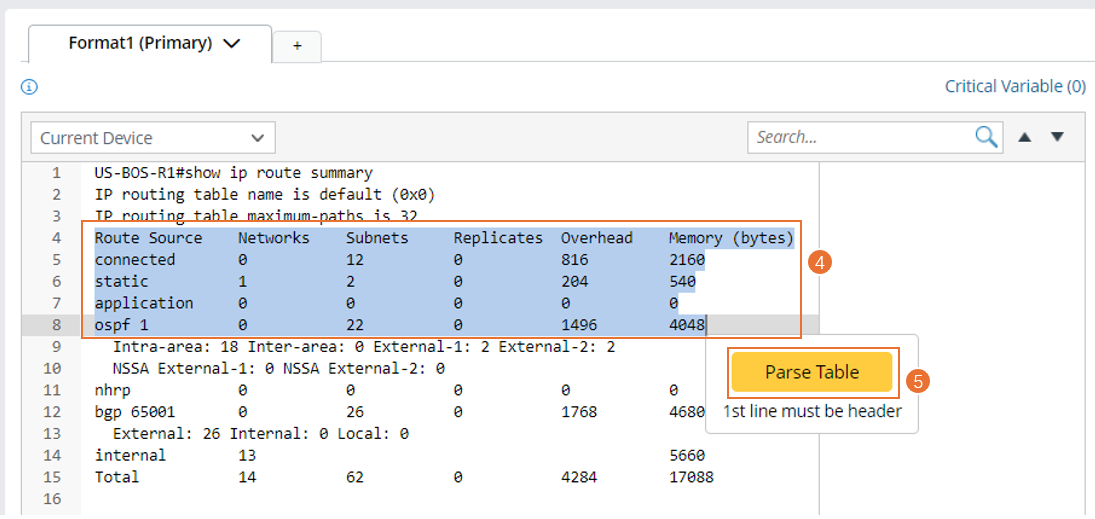

4. In the Parser Input area, select lines 4-8.
5. The floating tip window holding the Parse Table button will appear. Click the Parse Table button.

6. The Table type will be selected, then you can continue to define the table parser. For detailed steps of defining a table parser, see Define a Table Parser.
