Calculate Path Across NSX-V Network

The system supports end-to-end path calculation across an NSX-V network, and you can analyze the traffic flow between two endpoints.

1. Click Path next to the search bar.

2. Enter the IP address of endpoint A in the Source field and the IP address of endpoint B in the Destination field. The available gateways are auto-identified, and you can select the desired one from the Gateway list.

Tip: If Anycast Gateway is selected, detailed information will be displayed, including APIC domain, tenant, APP profile, EPG, and BD (IP).

Tip: To change the path direction, click the  icon and select the  icon. By default, the system calculates two-way paths.

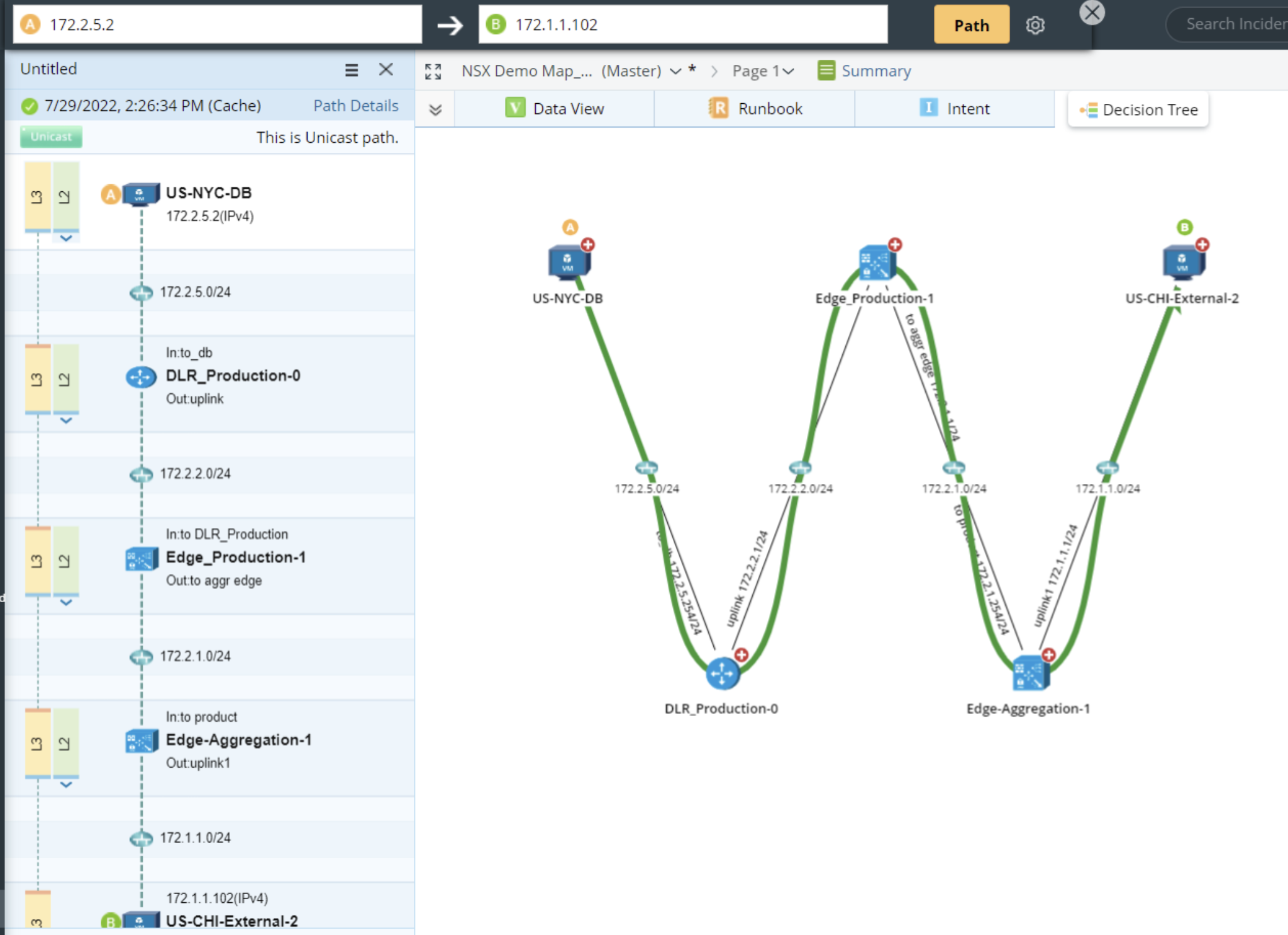

3. Click Path to start calculating. Then you can view the diagrammed path on the map.
