Build Column Group from Filtered Path Intents

Based on path properties that already exist in ADT, the path intents associated with the paths in ADT can be filtered by defined filter conditions. Then the filtered path intents will be added to path intent-related columns of ADT. The Path Intent and intent output columns show the filtered path intents and the path intent information.

To build the column group by filtered path intents, follow the steps below:

Prerequisites: Ensure that the ADT has path objects, that is, columns containing path properties.

1. Go to Automation Data Table Builder, then create a new group under the Define Additional Column Groups tab and name it.

2. Under the new group tab, define the following settings:


   1. Select Method to Build Group Table: Select Path Intent.
   2. Description: Input descriptions for the column group to describe its use and function.
   3. Path Column: In this field, select path column from the dropdown list to used paths in the path column to associate path intents.


   4. Define conditions to filter intent for each path: In this field, define the conditions, that is the Path Intent Identifier, Operator and the intent name/tag, to find the matched path intents.


      Path Intent Identifier: Select the path intent identifier from the drop-down list (Intent Name, Intent Tag).
      Operator: Select one operator, for example "Contains", "Match any".
      Manually Input/Select Tags: For Intent Name, input keywords for matching intent name to filter path intent. For intent Tag, click, then select tags for filtering path intent (for example, the "Assessment" tag.

3. Mapping available fields to Column Group: Drag and drop the available fields to the column group definition area to create ADT columns automatically.

   There are two field categories in this area to be selected:

   • Built-in Fields: The built-in field available for this group table is Path Intent field. It is required to drag this field to the column group area to proceed.
   • Intent Data: Other intent information can be displayed in the intent data columns of the ADT, that is, intent message, intent status code, device status code, status code summary, result summary, intent devices, intent map, intent CLI commands, and last execution time, etc.


4. Click Save to save the settings. But table data will not be built.

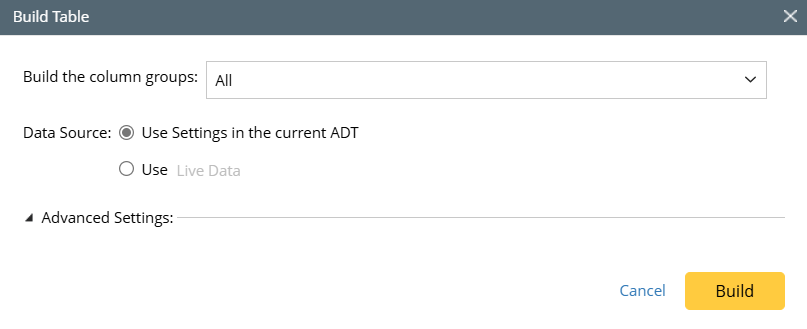

5. Click Save and Build. The Build Table dialog appears, define the settings as per your preference to build the ADT data.
