View Path Result and Exporting Report

At each run cycle, the system compares the current result of a path with the last calculated one and the Golden Path. The calculation and comparison results are recorded and visualized in the Application Manager.

• View the Latest Results in the Application Manager
• Export Path Results

View the Latest Results in the Application Manager

The Application Manager shows the latest path results and supports a variety of filter methods to filter the results.

1. View the changed or failed paths in the Result, Compare with Last, and Compare with Golden columns.


   Tip: Use the Filter function to search for the results that you want to view. You can use multiple filters together.

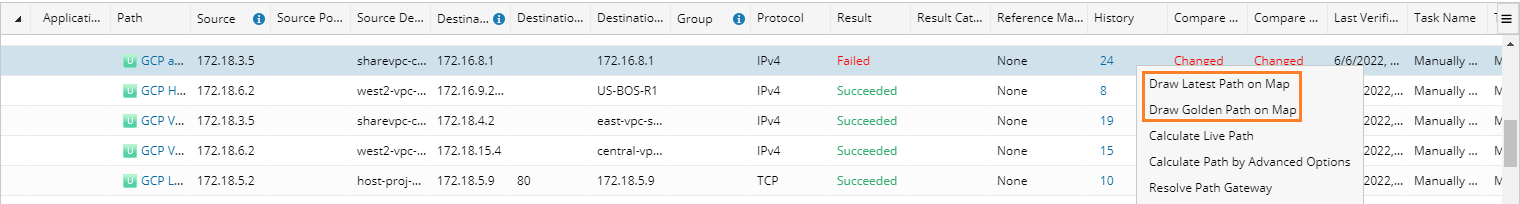

2. Draw the current and Golden paths on a map to see the differences. To draw the paths on a map, select Draw Latest Path on Map and Draw Golden Path on Map respectively in the right-click menu of a path.

3. Draw the current and last calculated paths on a map to see the differences.


   Tip: The Application Manager stores the last calculated and earlier historical paths. To view and map the history paths, right-click a path, select View Path History, and right-click a history path to open it on a map from the Path History pane.

Export Path Results

You can export the latest path results to a CSV file. Click Export in the Application Manager and select Export Report.

Note: If you are using the Filter function, the exported results only include the filtered content.
