Method 3: Use Pop-up API Stub

Pop-up API Stub is a way to integrate with maps and runbooks to collect network data or troubleshoot network issues in third-party systems. Users can directly define a pop-up API stub, use maps and runbooks by clicking a hyperlink in their third-party systems, without the need to predefine API tasks, and only a few scripts are required.

The general workflow to use Pop-up API Stub is as follows, Sample Image:

1. In a third-party system: Define Scripts to Generate a Hyperlink for NetBrain Pop-up API Stub.
2. Click the hyperlink to Define Pop-up API Stub, such as map and runbook settings.



Step 1: Define Scripts to Generate a Hyperlink for Pop-up API Stub

For a third-party system like ServiceNow, a hyperlink can be created to track an incident. You can write scripts in the third-party system to generate a hyperlink for NetBrain pop-up API stub.

A sample script is as follows (replace sample parameters with real instances):

import urllib.parse
data1={
    'tenant': 'tenant_name‘,
    'domain':'domain_name',
    'vendor':'ServiceNow',  # the vendor name of your third-party system
    'device':'device_name', # the hostname of the problem device
    'search':'device_to_search',   # this parameter is optional
    'interface':'interface_name',  # one interface of the problem devices and it is required to extend neighbors from the interface
    'source':’172.24.32.210‘,   # the source of a path, only used for calculating a path
    'destination':'172.24.31.125',   # the destination of a path, only used for calculating a path
}
print('https://IP address of your NetBrain Domain/apimaplink.html?'+ urllib.parse.urlencode(data1))

Step 2: Define Pop-up API Stub

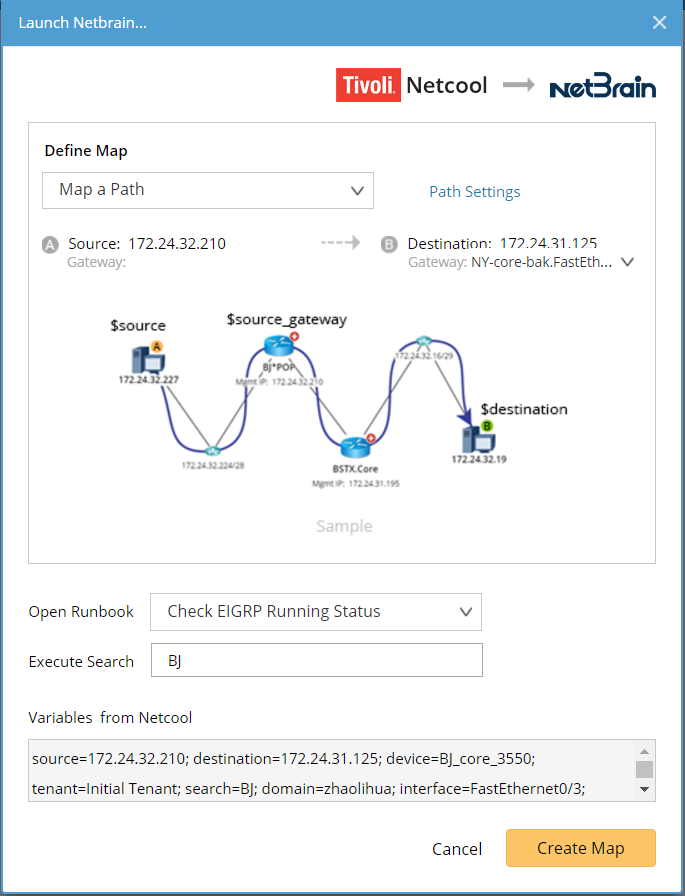

1. Click the generated hyperlink, and you will be required to log in to the NetBrain system. Then the Pop-up API Stub dialog prompts as follows, with the parameters defined in the scripts populated. Sample Image:



   Tip: To have the vendor logo displayed at the upper-right corner, you need to manually add it to the system. See Adding an API Vendor for more details.

2. Select a way to create a map in the Define Map area. By default, the pop-up API stub creates a map as per the definitions in your scripts.

• Map Device and its Neighbors — draw the problem device and its neighbors on a map. You need to specify the neighbor interfaces that you want to extend in the third-party system.
• Map a Path — draw the traffic flow from a device to another. For a path, you can also define path parameters, such as data source, and protocol, by clicking the Path Settings hyperlink.


  Note: You need to specify the destination and source devices when writing scripts in the third-party system.

• Open Site Map of the Device — open the site where the problem device locates. To avoid changing the original site data, select the Make a copy of the Site Map checkbox.
• Open Existing Map — open an existing map in your domain.
• Open Context Map — open the context map of the problem device. Select a device category (Legacy Device or Cisco ACI Device) for the problem device.
• New Empty Map — create a map page without any devices on it.

3. In the Open Runbook field, select a runbook to be executed on the map.


   Tip: You can predefine your preferred runbooks for a third-party vendor in the System. See Adding an API Vendor for more details.

4. Select whether to search for devices. See Searching for Devices for more details.
5. Click Create Map.
