Organize Paths Based on Applications

In the Path Browser, you can manage your paths based on applications.

Tip: To use the full functions of the path browser, you need to purchase an AAM license. Otherwise, you cannot create a new application and only can save the path in "Untitled Application".

1. Create an application for the saved paths.

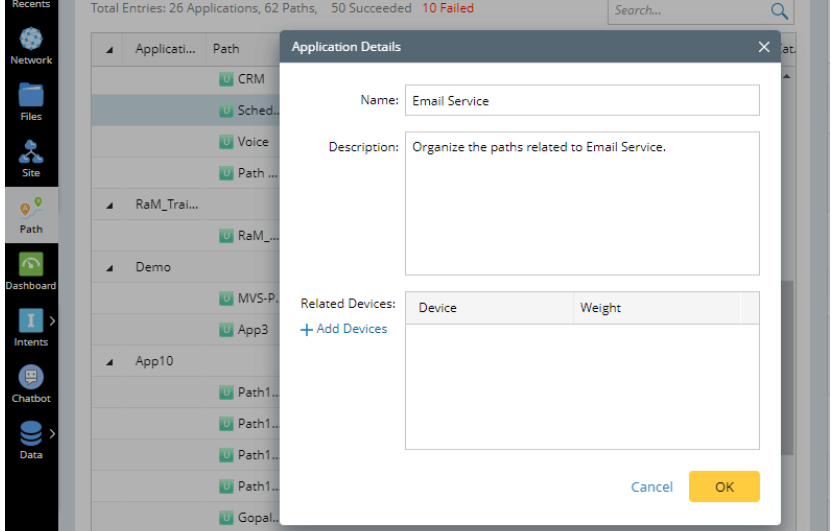

   1. In the Application Manager, click New Application at the upper-right corner.
   2. Give a meaningful name to the application, such as Email Service.
   3. (Optional) Add a description for the application.
   4. (Optional) Add related devices to the application and define a weight for each device.


      Tip: Each related device has a default weight value of 10, and you can double-click to modify the value. The weight is used to sort the application list order. See Application Weight for details.

   5. Click OK.


2. Assign paths to an application.

• If you want to move a path to an application, right-click the path, select Move to, and then select the application to which you want to move this path.
• If you want to create a path and then assign the path to an application, you can select an application for this path when you create it.


  Tip: If you have subscribed to the Application Manager feature, you can also manage traffic paths based on applications with this feature and periodically monitor the application paths to detect possible network changes and ensure application consistency. See Organizing and Verifying Paths in Application Manager for details.
