Integrate with Third-party Tools for SPOG

The capability to visualize data from 3rd-party cloud management tools enables NetworkBrain dynamic map to render a complete view of your Azure infrastructure. The integration with 3rd-party cloud management tools is highly customizable, which means NetworkBrain can be integrated with any cloud management tools to suit your specific needs. For more details, refer to SPOG.

  • [Azure] Monitoring Azure Metrics

The following Data View Template displays the Azure Metrics information collecting metrics from Datadog. Note that you need to set up the Datadog configuration to collect the source data from Datadog first.

Diagram Description automatically generated

  • [Splunk] Monitoring Azure Logs

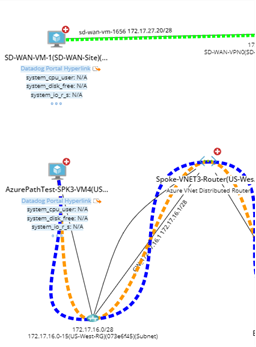

The following Data View Template displays the Azure Logs Analytics information collecting logs from Splunk. Note that you need to set up the Datadog configuration to collect the source data from Datadog first.

Diagram Description automatically generated with low confidence



Use Runbook Automation for Azure Network View Azure Object Configurations
