Define Inline Expression

You can use the inline expression in the definition of a simple diagnosis instead of defining a compound variable and then using that variable in the diagnosis.

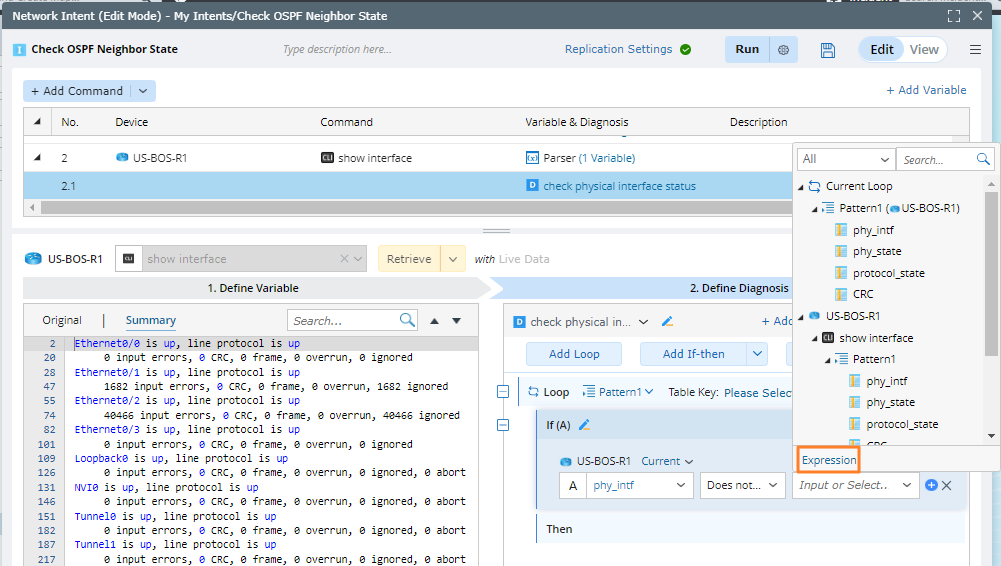

1. Click Expression.

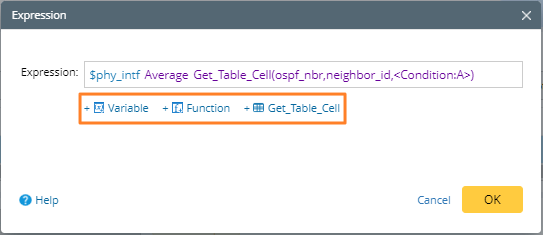

2. Define the variable and expression.


   1. Click + Variable to select the variable that needs to be referenced in the expression.
   2. Click + Function to select the definition expression of the variable.


      Note: You can call a built-in function or do a simple math operation (+, -, *, and /), such as $var1 + $var2.

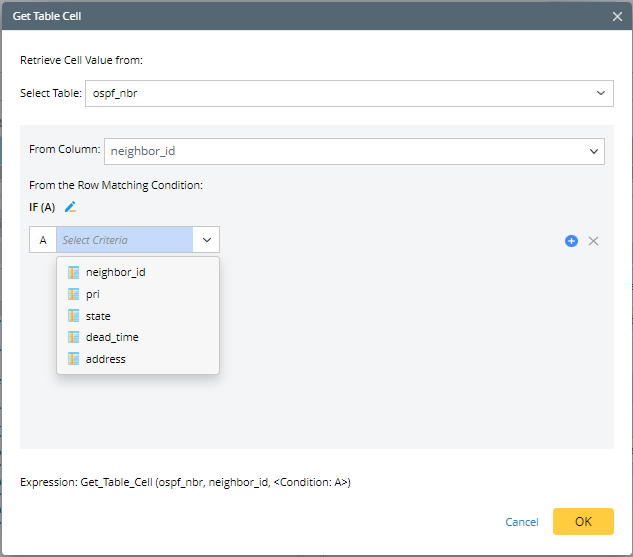

   3. Click + Get_Table_Cell to define where the cell value comes from.

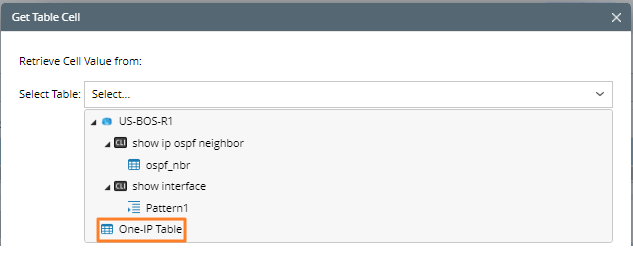

      Note: The cell value can also come from One-IP Table.

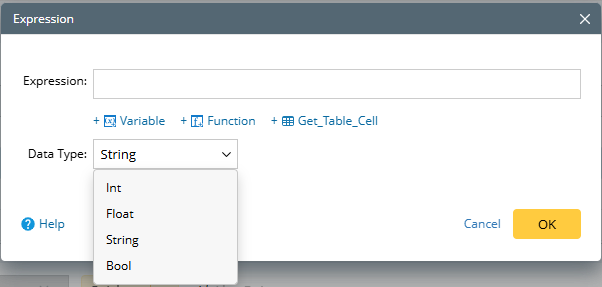

   4. If you define the expression from the left side, you need to select the variable type to determine the operator.

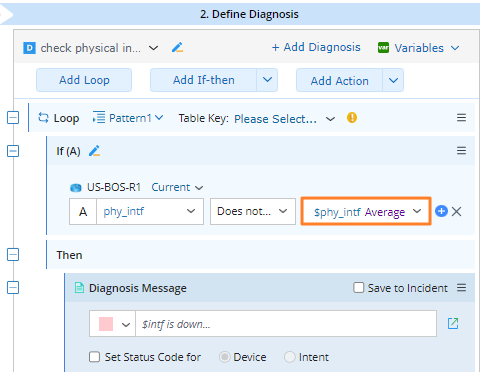

3. View the defined expression in the diagnosis.
