Add ADT Row

Add ADT from Variable Manager dialog, which can be opened from the diagnosis window.

Add ADT Row

Complete the following steps to check the critical routes of the IT server subnet and add the critical routes into the Critical Route ADT.

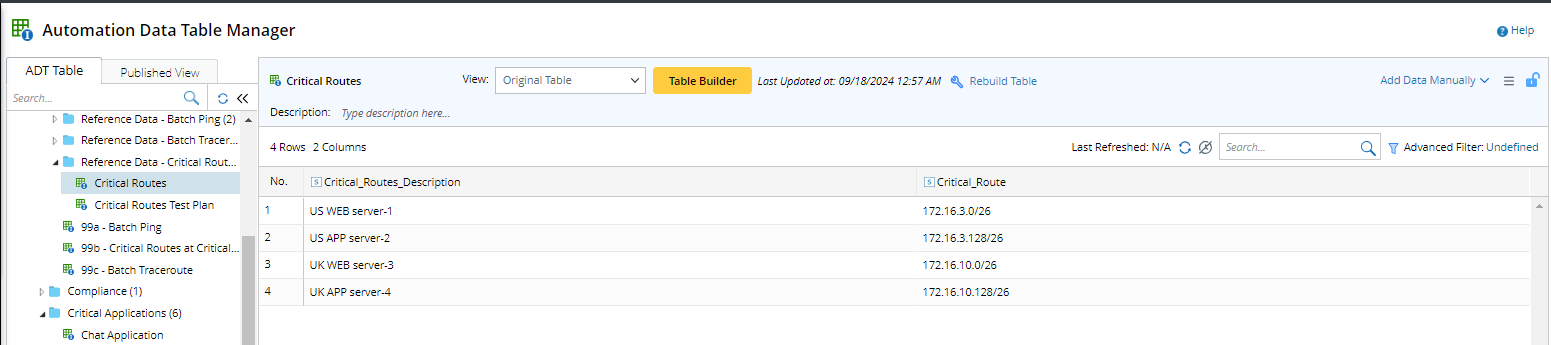

1. Create an ADT for the critical routes.


2. Define an intent to check the device's critical routes and add to ADT.
   1. Retrieve and parse the OSPF routes using the command show ip route ospf on devices.


   2. Define a formula column to get the next hop device by the next hop IP.


   3. Add the Critical Route ADT into the intent.

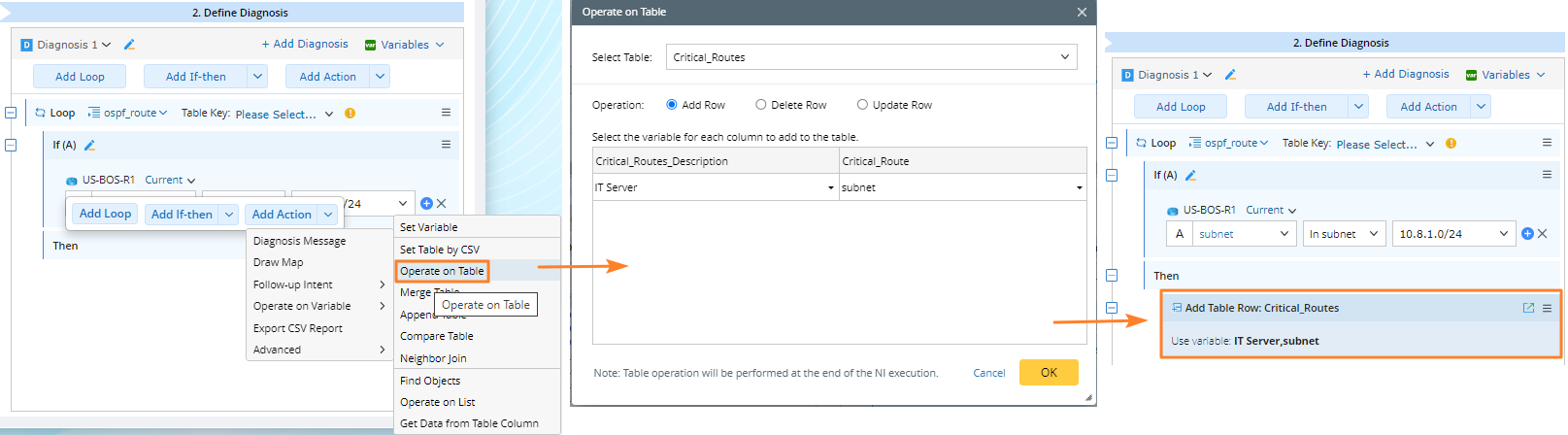

3. Define diagnosis to loop the OSPF routes, find the critical routes, and add them to Critical Route ADT.
