Advanced Settings for Table Parser

In addition, the system provides more advanced settings to enable the parsing of a wider range of table-formatted text.

Align Text in Table Columns

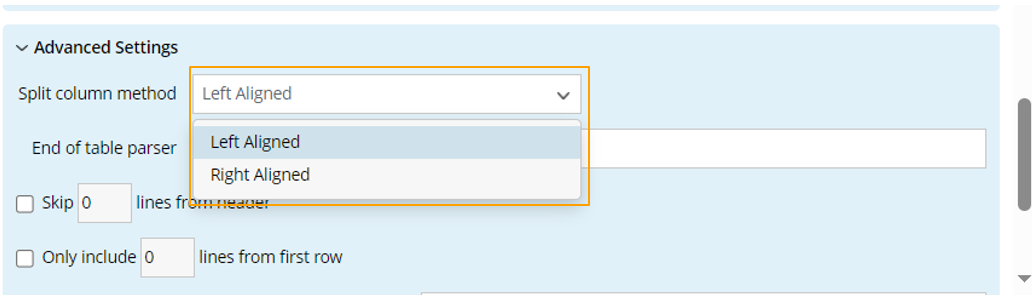

You can select the table text to appear left-aligned or right-aligned with the column separators in the sample text. By default, left-aligned is selected.

Note: The parsed result may differ depending on the alignment you select. The default option, left-aligned, usually works in most cases. If it won't work, use the right-aligned option.

Redefine Identifier to Stopping Parsing

By default, the parsing process of a Table Parser stops when there is a blank line (“^" or "$” is used as the identifier) in the text. If a blank line is intended to be in the text by design, you can redefine the identifier. For example, if you are not interested in the data of BGP devices, set it as “bgp” as follows, so the parsing process will not stop until the line includes “bgp”. In this example shown in the diagram below, parsing will stop at line 14.

Note: A blank line will not be parsed whether it is defined as the identifier to stop parsing.

Skip N Lines from Table Header Line

When there are extra lines between the line of the table header and the lines of table rows, for example, the table header in the command output of show ip eigrp neighbor is wrapped and occupies two lines. You can select to skip 1 line from the table header line in the Advanced Settings so that the unwanted lines will not be parsed.

Note: You can define how many lines from first row to be displayed in the parsed result.

Only Include N Lines From First Row

There are cases where only several consecutive lines are expected in the output table. For example, in the parser shown below, the sample text in line 9 is not needed.

To exclude this line from the output, you can define to only include the 4 lines from the first row.

Reuse Last Row’s Value in Empty Cells

Sometimes, if a value of a table cell appears recursively in the same column of consecutive rows, the value will only be displayed in the first row and omitted in other rows until the value starts to change. For example, the empty cells of the Metric column in the following raw text indicate that the value keeps the same as the one in the last row. However, they will be treated as empty cells after being parsed, which may not meet your expectation.

To resolve this case, you can enable the option If the field is empty, use the value of the last row in the Advanced Settings and select the Metric column. Then the parsed result will include all the required values as follows:

Exclude Table Lines

Sometimes the raw text of table-formatted data may contain a line of separators or unnecessary data inside a table. To filter the line out, you can enable the Exclude Lines option in the Advanced Settings and enter the rules to exclude lines. In the example below, enable this function, then input "application" to remove the data of parsing the original text in line 7.

The rule for excluding a line can be in either of the following shapes:

• Character (the line including application in the following example)
• Regex


  Note: When you define multiple rules in the Exclude Lines field, use the Enter key to separate two rules.
