Add ADT Data with System Table

If data resources in other system tables are to be used in one ADT, the data resource of the system table can be imported to ADT as table data.

Follow the steps below to complete the operations:

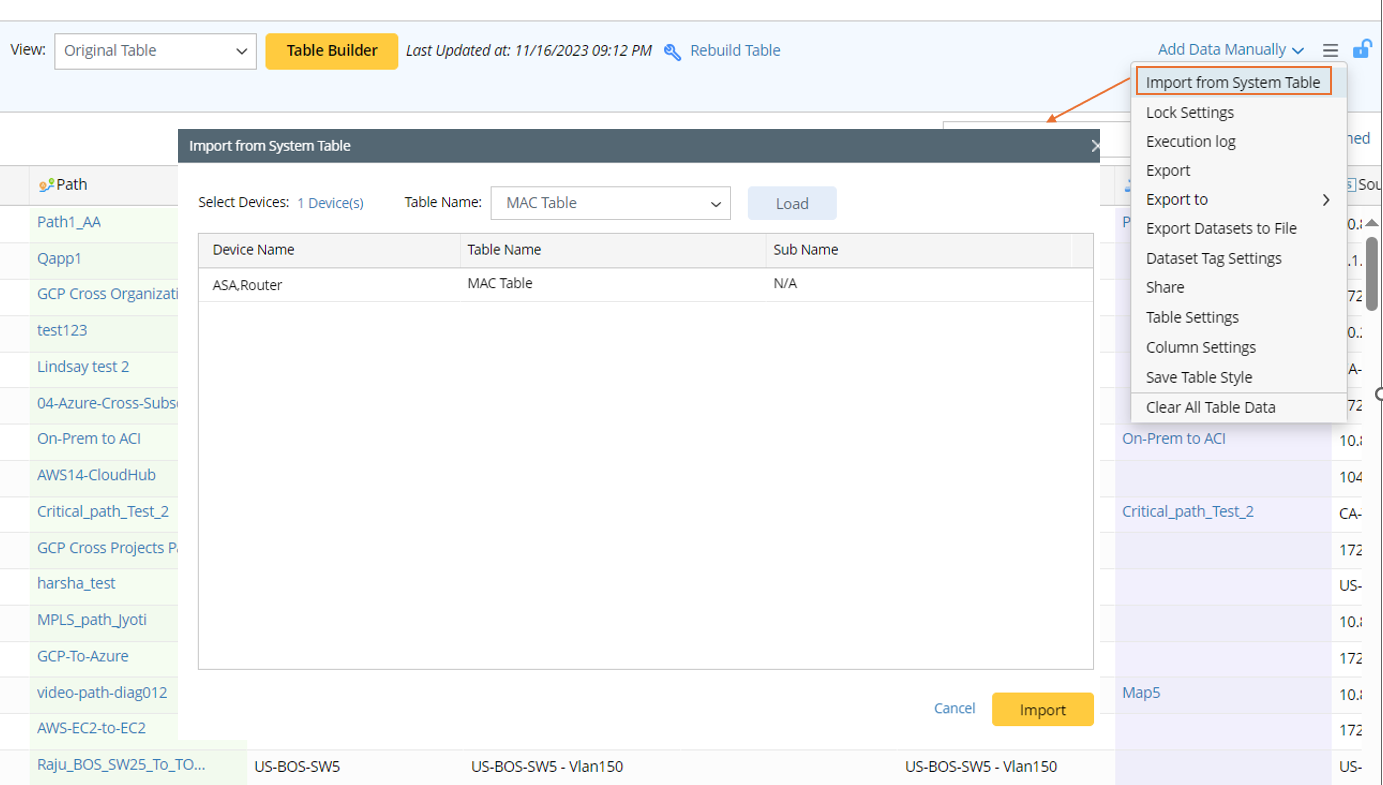

1. Click the  icon to open ADT Menu and select Import from System Table.

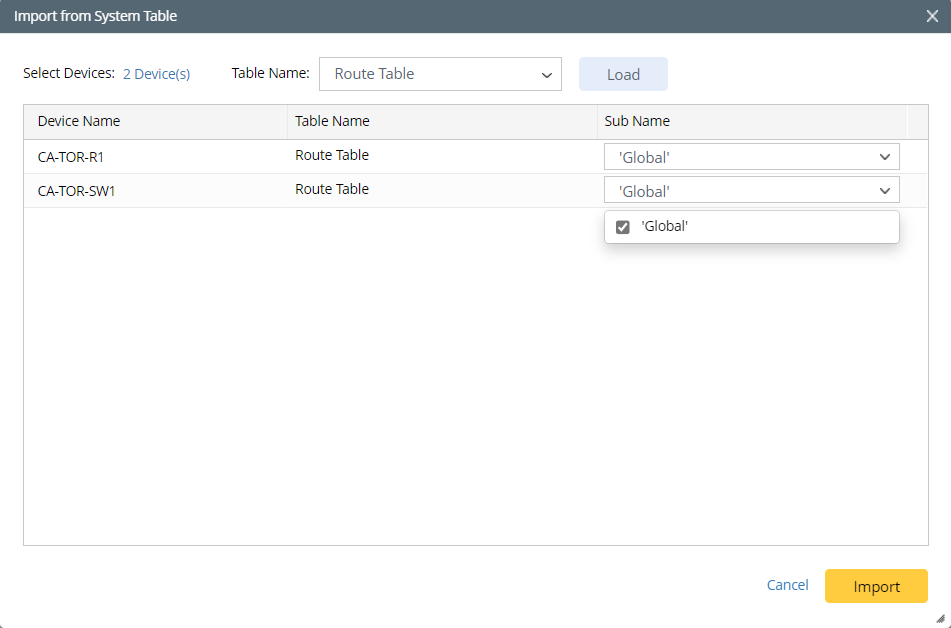

2. In the pop-up dialog, define the following settings.
   1. Click Select to select devices for filtering system table, then click OK.


   2. Select system table from the Table Name drop-down list. Then click Load, the selected system table containing the devices is displayed.
   3. Select table to be imported.


3. Click Import in this window, then data will be loaded to the ADT


   Note: If the ADT is not empty, a confirmation box will appear. Click Yes in this confirmation box to import the table data. The current table data will be replaced with the imported table.

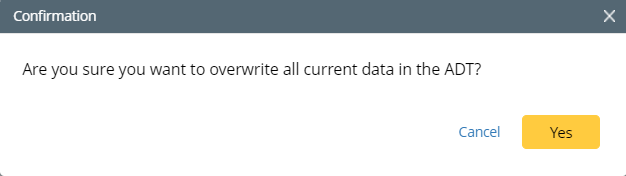

4. a confirmation box will appear.
5. Click Yes. in this confirmation box to import the table data. The current table data will be replaced with the imported table.
