The Syntax for Defining Target Devices
The device scope for recommended automations at the device/interface level can be customized via built-in functions.

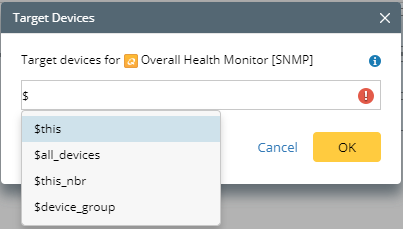

When you type the $ character in the text field, the built-in 4 functions are auto-populated in the drop-down list.
- $all_device — target all devices on a map, and no parameters are required.
- $this — target the selected device, and no parameters are required.
- $this_nbr — target the selected device and its neighbor devices.
-
$device_group — target all devices in a specified device group.
Note: When Qapp/Gapp is designated as a recommended automation, it will only target visible interfaces on a map.
$this_nbr
Format: $this_nbr("topo_type","interface_type","only_in_map")
Example: $this_nbr("L3_Topo_Type","1","true")
The following table lists the parameters required in the $this_nbr function.
| Parameters | Type | Required? | Description |
| topo_type | String | Yes |
The topology type used to filter neighbor devices. Legal values include:

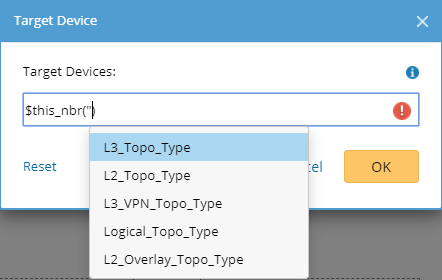

Tip: When you type double quotes, all topology types will be auto-populated for quick selection.
|
| interface_type | Integer | No |
The interface type used to filter the interfaces of matched neighbor devices. Legal values include:
|
| only_in_map | Bool | No |
Determine whether to include neighbor devices that are not displayed on current map. Legal values include:
|
$device_group
Format: $device_group("device_group_path")
Example: $device_group("Public/bjpop")
The following table lists the parameter required in the $device_group function.
| Parameter | Type | Required? | Description |
| device_group_path | String | Yes | The name and location of the device group. |
