Positions for Data Units for Default Data View
Default Data Units on Traditional Device Positions
| Position | Device Data Unit |
| Position1 | Management IP |
| Position2 | Device Type |
| Position3 | NULL |
| Position4 | NULL |

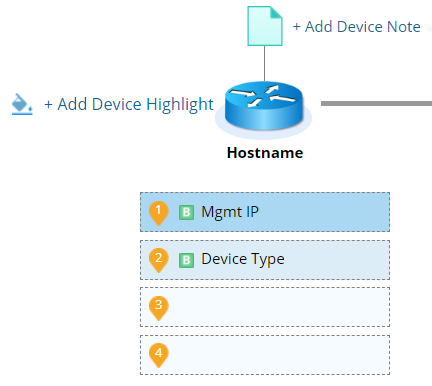

See the picture below to understand the device's position.
|
Note: If the value of a data unit is null, it will not be displayed in the specified position. |
Default Data Units on Traditional Interface Positions
The following table lists the default data units on each interface position for different topology types.
| Position | IPv4 L3 Topology | IPv6 L3 Topology (IP Interface) | L2 Topology | IPSec VPN Topology | GRE VPN Topology |
| Position1 | Routing Protocol | Link-local Address | Mode | Crypto Endpoint | IP Address |
| Position2 | NULL | IPv6 Routing Protocol | Trunk Encapsulation | Ident Traffic | Source |
| Position3 | Multicasting Mode | Multicasting Mode | Speed | Crypto Map | Destination |
| Position4 | MPLS VRF | MPLS VRF | Duplex | NULL | NULL |
| Position5 | Inbound ACL | Inbound ACL | Access VLAN | NULL | NULL |
| Position6 | Outbound ACL | Outbound ACL | Native VLAN | NULL | NULL |
| Position7 | Description | Description | Description | NULL | NULL |
| Position8 | NULL | NULL | NULL | NULL | NULL |
Default Data Units on SDN Device Positions
The following table lists the default data units on each position for SDN devices.
| Position | ACI | VCenter | NSX | ||||||
| Fabric Node | VRF | Subnet | End Point | L3 Out | Cluster Compute Resource vSwitch | VMware Distributed Virtual Switch | Computer Resource VSwitch | NSX Logical Switch | |
| Position1 | oobMgmtAddr | NULL | Ip Address | Ip Address | Ip Address | NULL | NULL | NULL | NULL |
Default Data Units on SDN Interface Positions
The following table lists the default data units on each interface position for SDN devices.
| Position | ACI | VCenter | NSX | ||||||
| Fabric Node | VRF | Subnet | End Point | L3 Out | Cluster Compute Resource vSwitch | VMware Distributed Virtual Switch | Computer Resource VSwitch | NSX Logical Switch | |
| Position1 | IP Unnumbered | NULL | NULL | NULL | NULL | Port Group | Port Group | Port Group | NULL |
| Position2 | NULL | NULL | NULL | NULL | NULL | VLAN | Connectee | VLAN | |
| Position3 | NULL | NULL | NULL | NULL | NULL | NULL | VLAN | ||
| Position4 | NULL | NULL | NULL | NULL | NULL | NULL | Port Name | ||
