Using Context to Understand Network Design and Troubleshoot

Example: Troubleshoot network design and troubleshoot slow voice based on the predefined context.

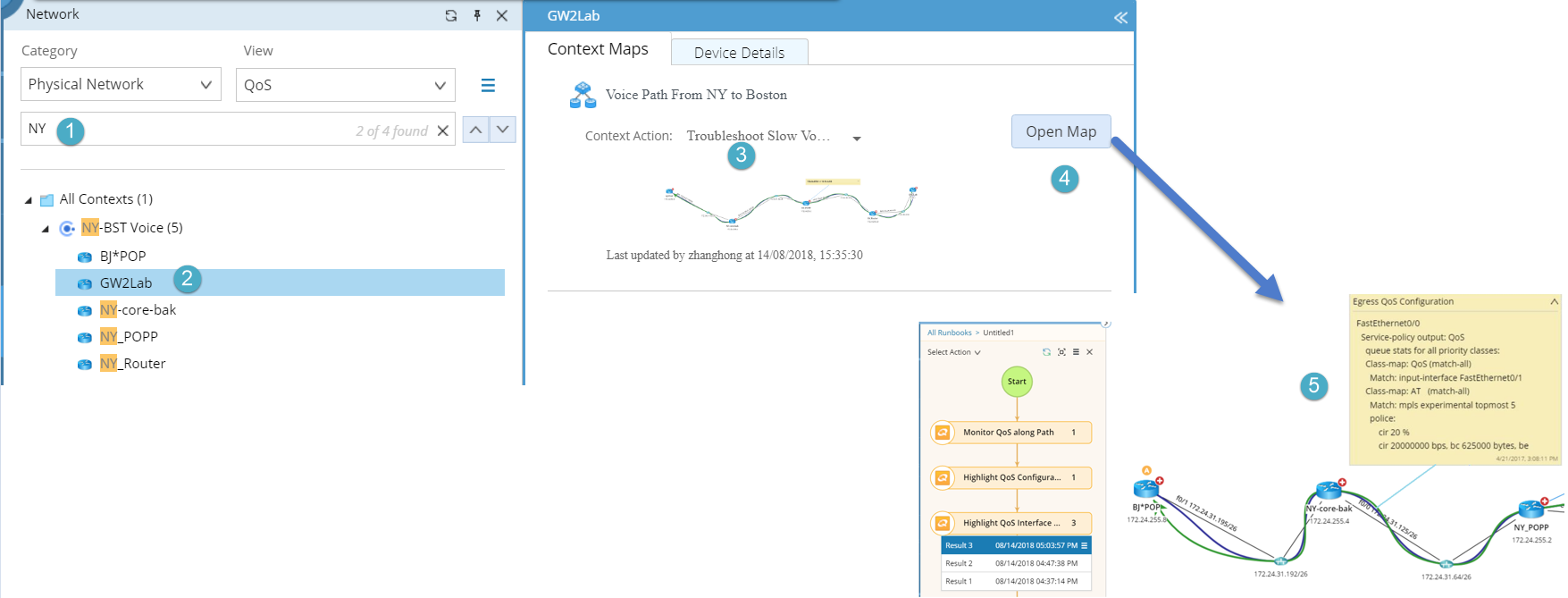

1.Click Network on the taskbar, then find the NY-BST Voice context under the QoS view.

2.Click the target device, and view its context maps.

3.Point to the Voice Path From NY to Boston context map and select the action Troubleshoot Slow Voice from the drop-down list.

4.Click Open Map. You can execute the runbook to monitor the QoS parameters and troubleshoot the slow voice.
