After your ACI network data is discovered and the benchmark task is performed in your domain, the data model is organized in the Network pane.
To view the details and its context maps of a node, proceed with the following steps:
1.Click Network on the taskbar.

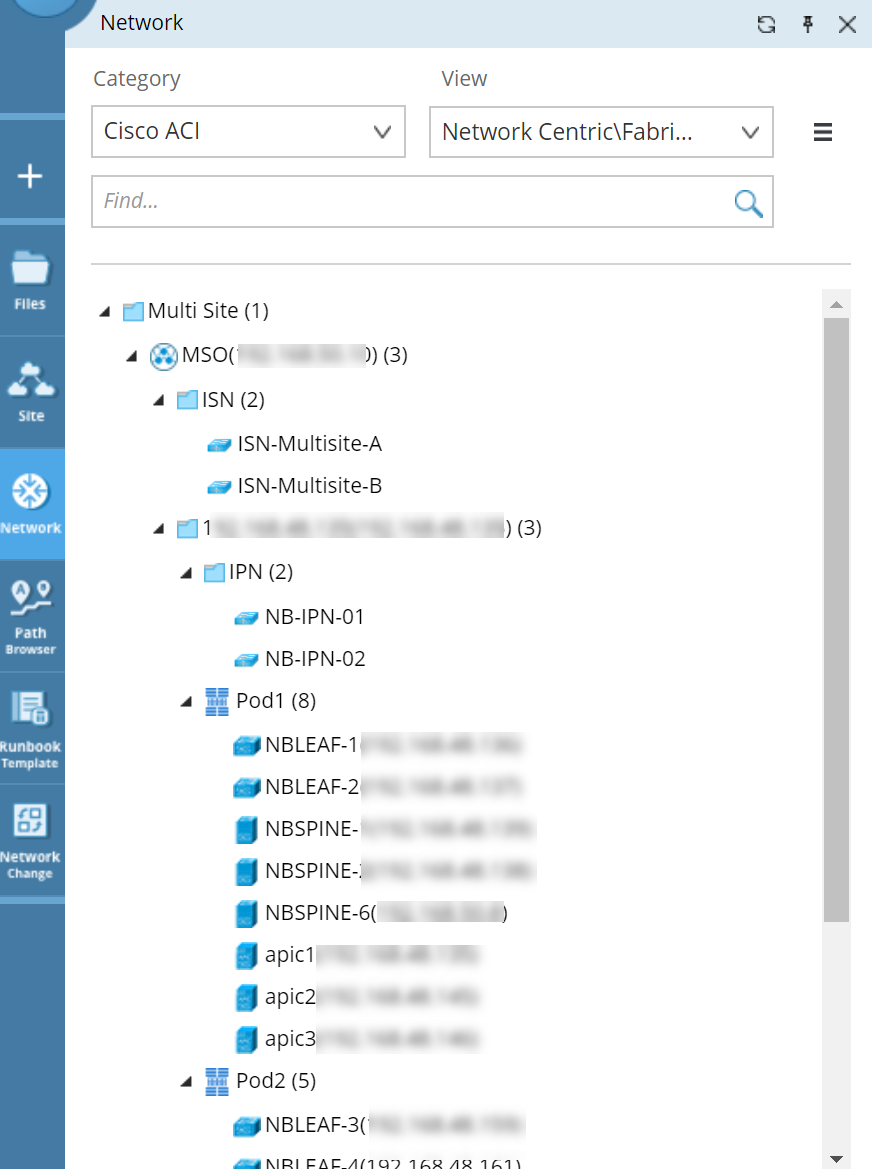

3.Expand the Multi Site node to view MSO (Multi Site Orchestrator) info.
4.Expand the ISN node to view all available Intersite Network Devices.
5.Expand the APIC Domain node to view Pod info and IPN info.
6.Click the IPN node to view all available IPN devices.
7.Click an IPN node and select the Device Details tab to view more information about the node.
8.Click a Pod node to view all ACI nodes in the Pod, including Spine switches, Leaf switches, and APIC servers.

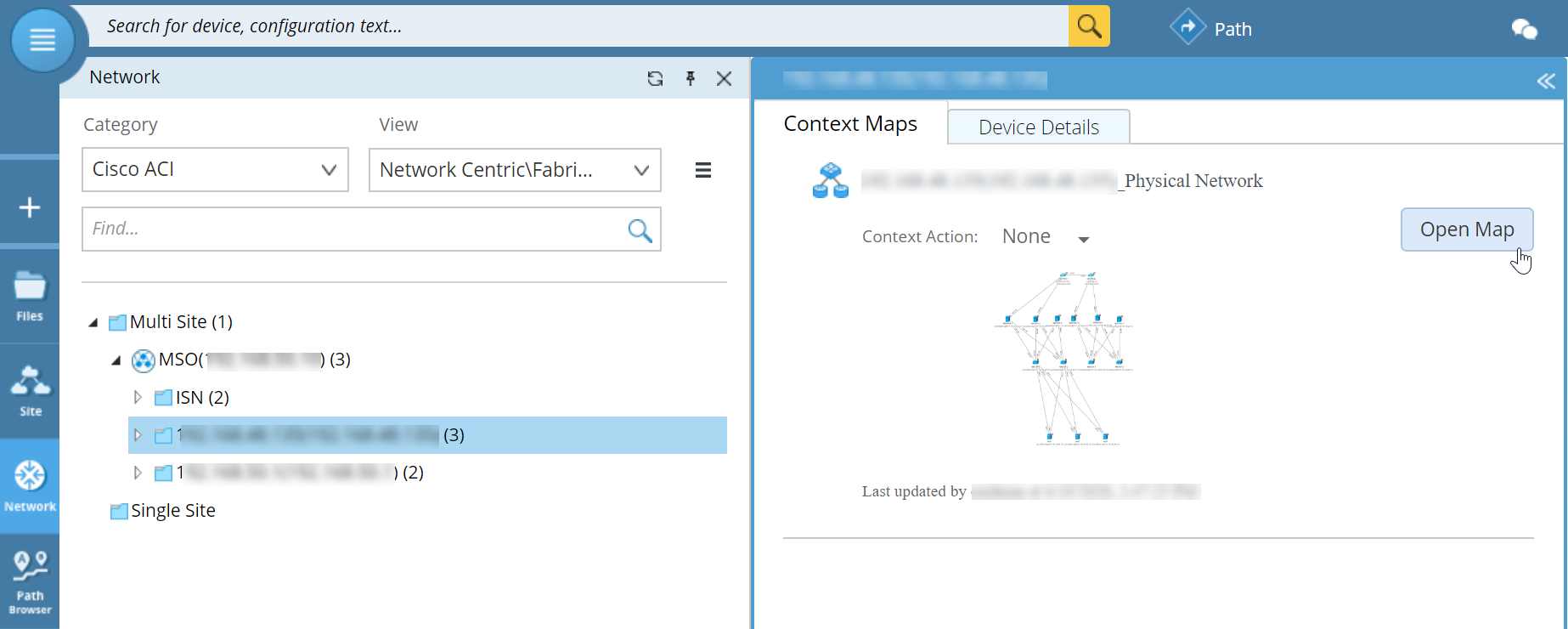

9.Select a Pod or device node, and select the Context Maps tab to view its context maps. The context map displays the physical topology of the selected Pod. You can click Open Map to view the context map.
Proceed with the following steps to view the system data table, such as Route Table, MAC Table, or NDP Table of an SDN node:
1.Map the target node.
2.Right-click the node, select Data Tables > Route Table/ARP Table/MAC Table.
