The NetBrain system provides end-to-end visibility for VMware vCenter network resources as well as their physical and virtual relationships. With NetBrain, you can quickly understand a vCenter network in the following aspects:
▪What you have in your vCenter network, such as ESXi hosts, VM hosts, virtual switches.
▪The detail information about a vCenter network node, such as properties.

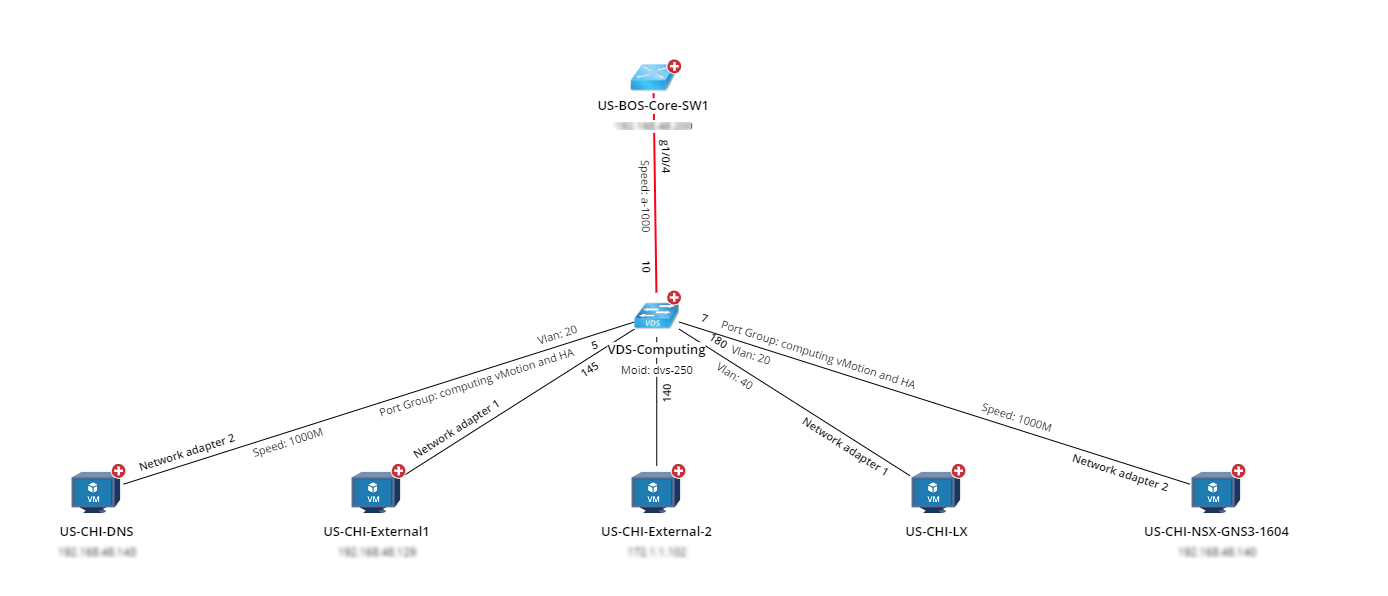

▪The network design between vCenter network nodes, such as Layer 3 connection of VM hosts and their gateway devices, and the (parent/child) relationship between an ESXi host and vSwitch/VMs under the host.
Follow the steps below to visualize your vCenter network:
