Site map is a kind of container map that diagrams flexible device members in a site, which are visible to all users.

Site map has the following two types:

▪Overview Map — shows the overall architecture of your network logically and physically. It has the following two views:

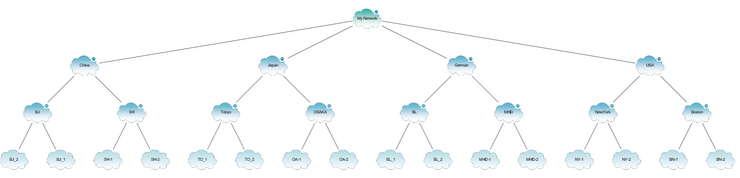

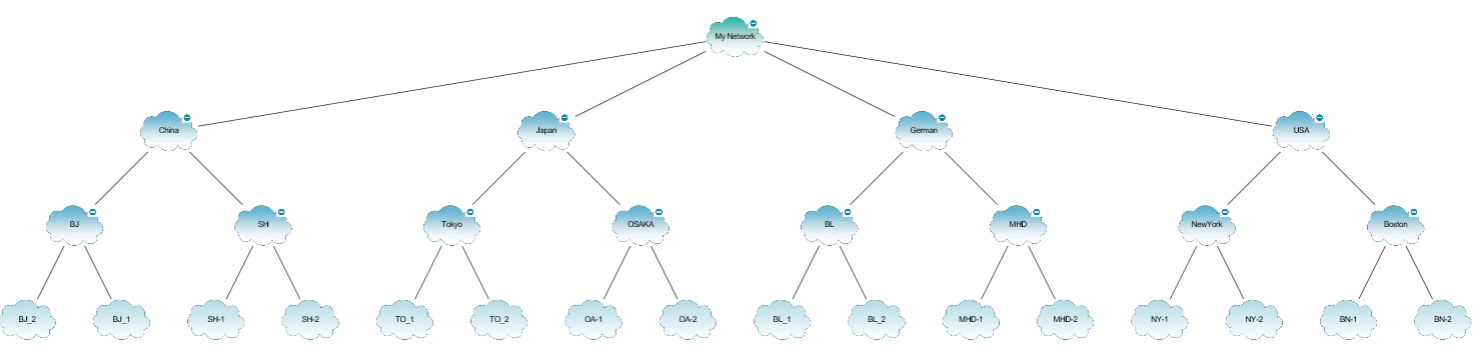

oHierarchy View — shows the logical relationships between different sites in your domain, including container sites and leaf sites.

oTopology View — shows the connection relationships between different leaf sites in your domain.

▪Site Map — shows the connection relationships between leaf sites in a container site or devices in a leaf site. It has the following two types:

oContainer Site Map — shows the connection relationships between sites under a container site on Layer 3 page (default page), and the connection relationships between the site and its neighbor sites on the neighbor page.

oLeaf Site Map — shows the topologies of devices under a leaf site on Layer 3 page (default page) and Layer 2 page, and shows the connections between the site and its neighbor sites on the neighbor page.
