The system supports end-to-end path calculation (including Anycast Gateway and Contract Path) across an ACI fabric, and you can analyze the traffic flow between two endpoints.

1.Click Path on the search bar.

2.Enter the IP address of endpoint A in the Source field and the IP address of endpoint B in the Destination field.

3.By default, the system calculates two-way paths. To change the path direction, select the icon or the icon.

4.The related gateways will be auto-identified. If a device has multiple gateways, you can select the correct one from the Gateway list.

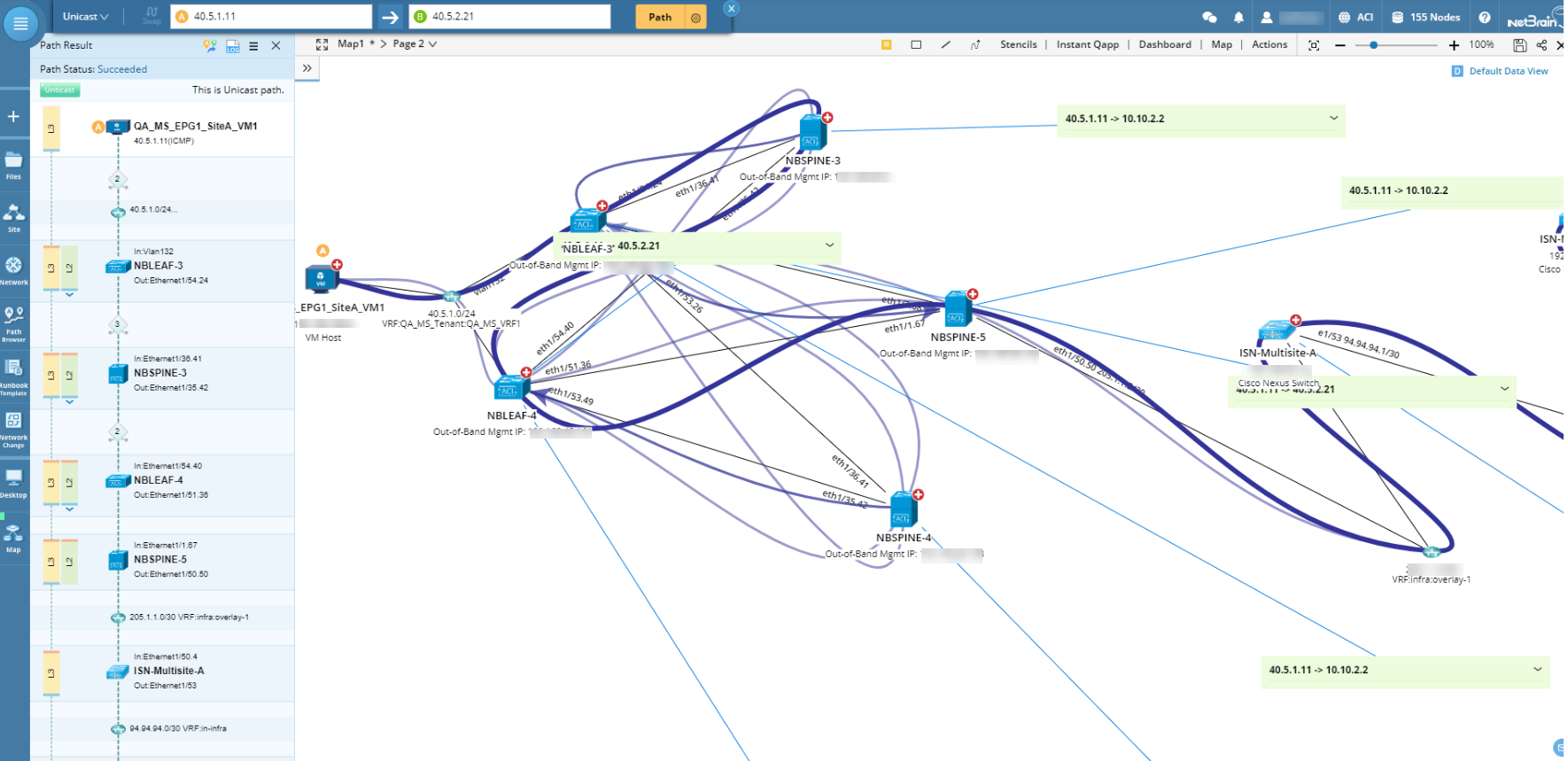

5.Click Path to start calculating. Then you can view the diagrammed path on the map.
