In the Network Change pane, you can view and manage all network change tasks in your domain.

Viewing Network Change Tasks in Your Domain

Follow the steps below to view network change tasks in your domain:

1.Click Network Change on the taskbar.

2.In the Network Change pane, view the network change tasks. Each task includes the following information:

Field

Description

Change Name

The name of a network change task.

Status

The status of a network change task. It includes five types of status:

▪Planning — indicates that the task is in planning and not sent for approval yet.

▪Pending — indicates that a network change is waiting for approval.

▪Approved — indicates that a network change is approved by an approver.

▪Rejected — indicates that a network change is rejected.

▪Archived — indicates that a network change is archived.

Creator

The creator of a network change task.

Approver

The approver of a network change task

Executor

The executor of a network change task

Last Activity Date

The date when a network change task is last executed.

3.Click the Scheduled Tasks tab to view the information of the scheduled tasks in your domain. A scheduled task has 6 types of status.

▪Waiting — indicates that the task awaits to be executed. It cannot be edited.

▪Running — indicates that the task is being executed.

▪Stopped — indicates that the task is stopped manually.

▪Executed — indicates that the task is executed.

▪Aborted — indicates that a scheduled task is aborted because it does not start before the specified time.

▪Stopping — indicates that the task is being stopped.

Finding a Network Change Task

You can quickly find a network change task via the following methods:

▪Search by Keywords — enter a keyword in the search bar and press the Enter key on your keyboard to start searching.

▪Filter by Time — select the start date and end date respectively, and click the icon to start filtering.

▪Filter by Status — click the Status drop-down list and select a status. Network change tasks will be automatically filtered by the selected status.

Tip: To reset the criteria for search or filter, click Reset.

Sharing a Network Change Task

You can also share a network change task as follows:

1.Right-click a task entry and select Share from the right-click menu.

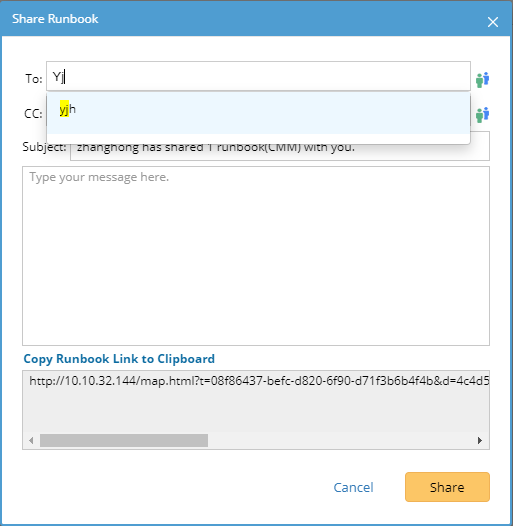

2.In the Share Map dialog, enter the email addresses in the To field, or click the To field and select a user from the drop-down menu.

3.Click Share. The task will be shared via the map link.
