Internet Cloud refers to the Internet that the boundary device connects to. In general, an Internet Cloud is regarded as a device, and it will be assigned an interface randomly. With the Internet Cloud, you can view the path between the Internet and the boundary device on a map.

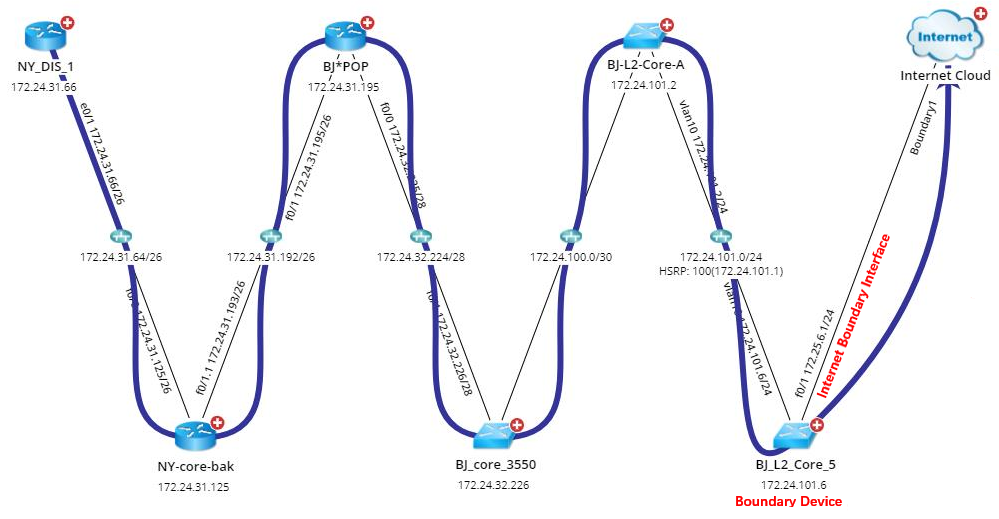

Here is an example of a path through the Internet.

1.Log in to the Domain Management page.

2.In the Domain Management page, click Fine Tune on the Start Page or select Operations > Fine Tune from the quick access toolbar.

3.On the Fine Tune tab, click Internet Cloud in the left pane, and click Add.

1)In the Add Internet Cloud pane, enter a unique name.

2)Click Add to select an interface of the boundary device. Click Submit.

4.Click Submit.
