Note: Container maps cannot be searched, such as overview map and site map.

1.Enter one of the following keywords in the search bar:

Data Source

Sample Keyword

Map name

OSPF devices

Map page name

OSPF 1 area 0

Device hostname

BJcore

Device management IP

172.24.10.2/32

Map note

OSPF problem

Interface name on the map

Vlan5

Interface IP address on the map

172.24.10.10/32

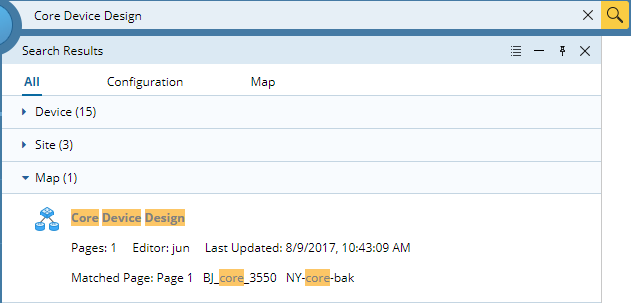

2.Click the icon or press the Enter key on your keyboard to start searching. The search results will be displayed in the lower pane with the matched keyword highlighted.

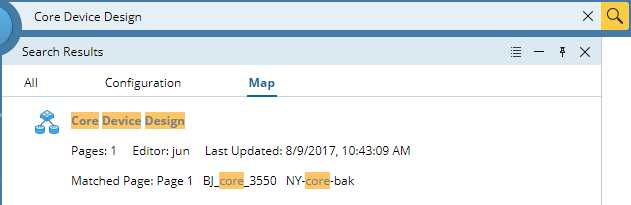

3.Select the Map tab to narrow down the search results.

4.Point to a map result and then click the icon to preview the map.

Tip: To open the map directly, point to a map result and then click the icon to select Open.

5.Click Open to open the map.

Tip: To share the map, point to the map entry and click the icon to select Share. See Sharing a Map for more details.
