The map data migration from Enterprise Edition currently supports the following objects displayed on map:

▪Devices, MPLS clouds, sites and device groups

▪Topology links and media

▪Device notes and map notes

▪Data units and highlight effects

▪Paths and shapes

▪Monitor results and legends

And the following elements contained in map files:

▪Map names, map pages, and thumbnails

▪Map zoom ratio and locking status

▪Device icon size

The following table lists the map objects that are displayed in the Integrated Edition with a different way from Enterprise Edition, or not supported in the Integrated Edition.

Map Object

Supported in Enterprise Edition

Supported in Integrated Edition

Display in Enterprise Edition

Display in Integrated Edition

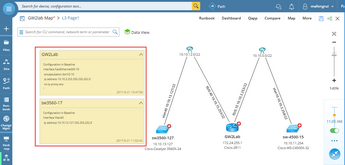

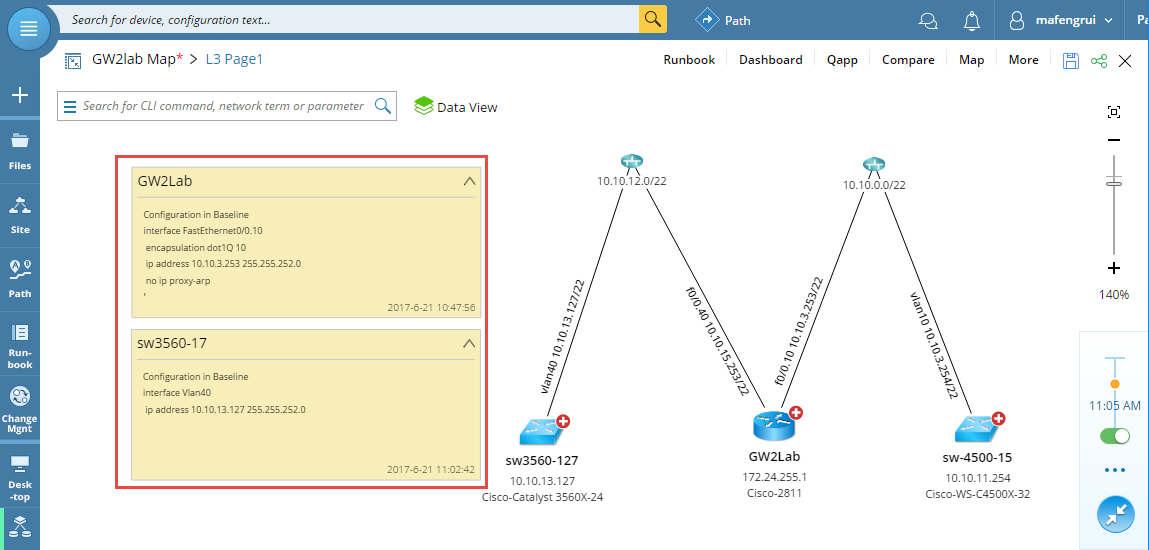

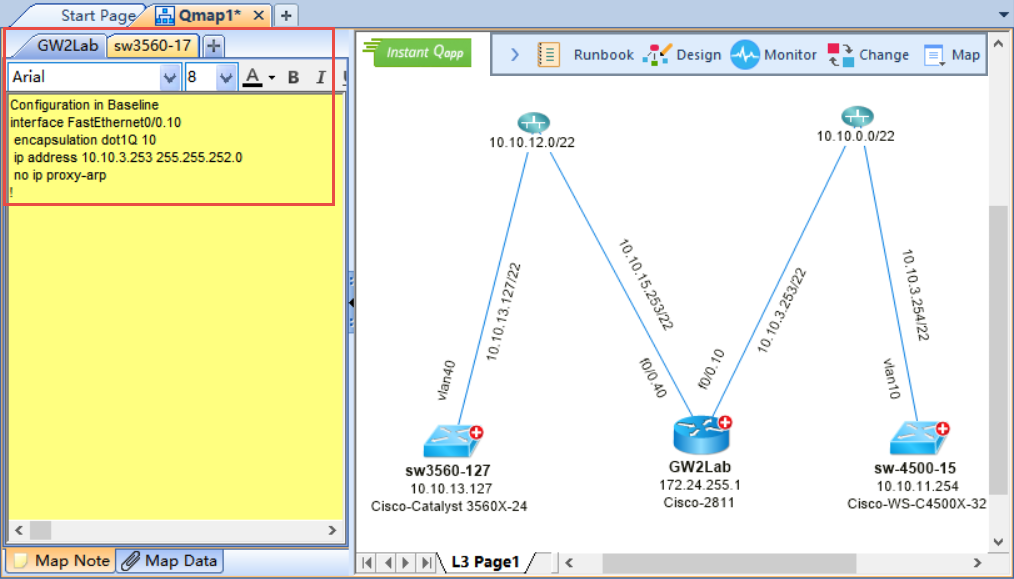

Map notes

Yes

Yes

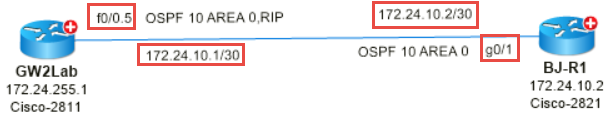

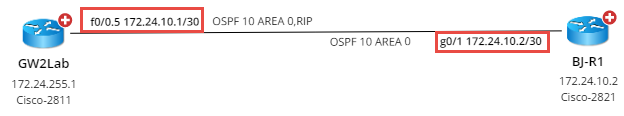

Interface names and IP addresses in data units

Yes

Yes

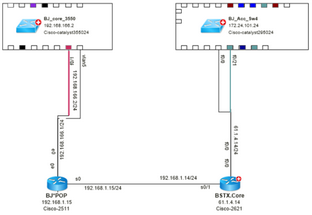

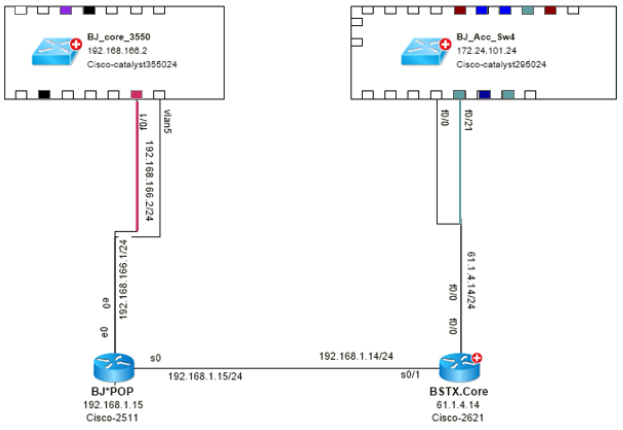

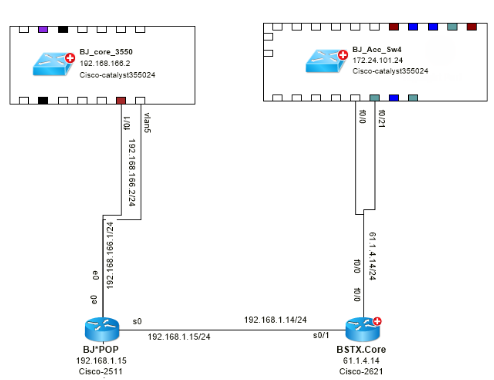

Highlight effects of layer 2 ports

Yes

Yes

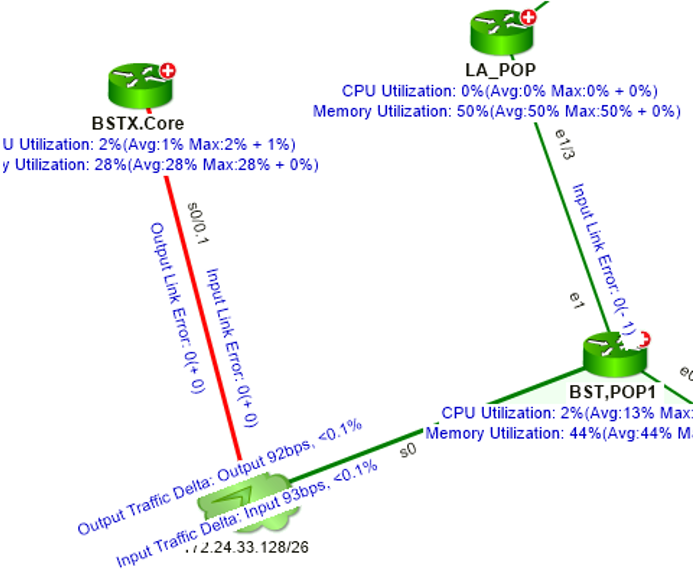

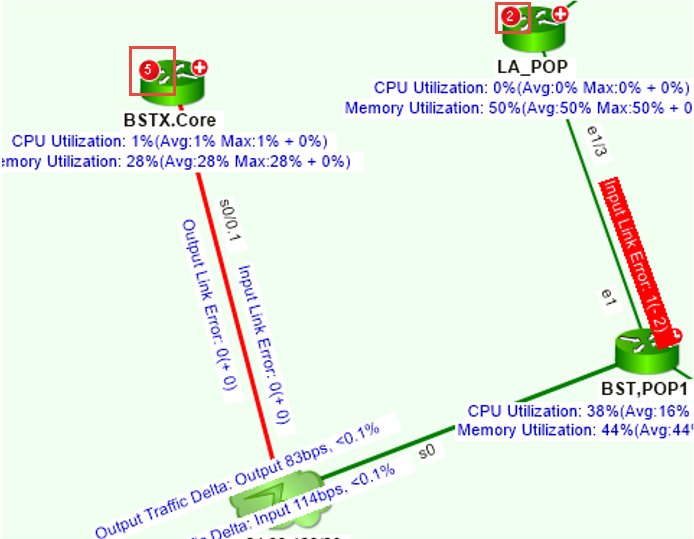

Alert or change count displayed on device icons

Yes

No

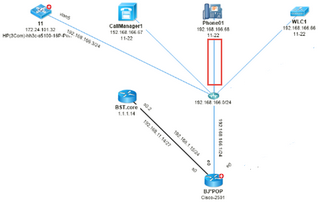

Effects of validating a map

Yes

No
