Prerequisites: The discovery and benchmark of your vCenter network has been completed. See Discover vCenter Data in NetBrain Domain for more details.

The system provides the Host and Cluster View to hierarchically displays the data centers, ESXi hosts, resource pools and virtual machines in a vCenter network.

1.Click Network on the taskbar.

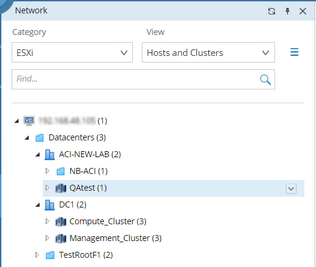

2.Select ESXi from the Category list, and then select Hosts and Clusters from the View list.

3.Click a node and select the Device Details tab.

4.View the context maps of a node.

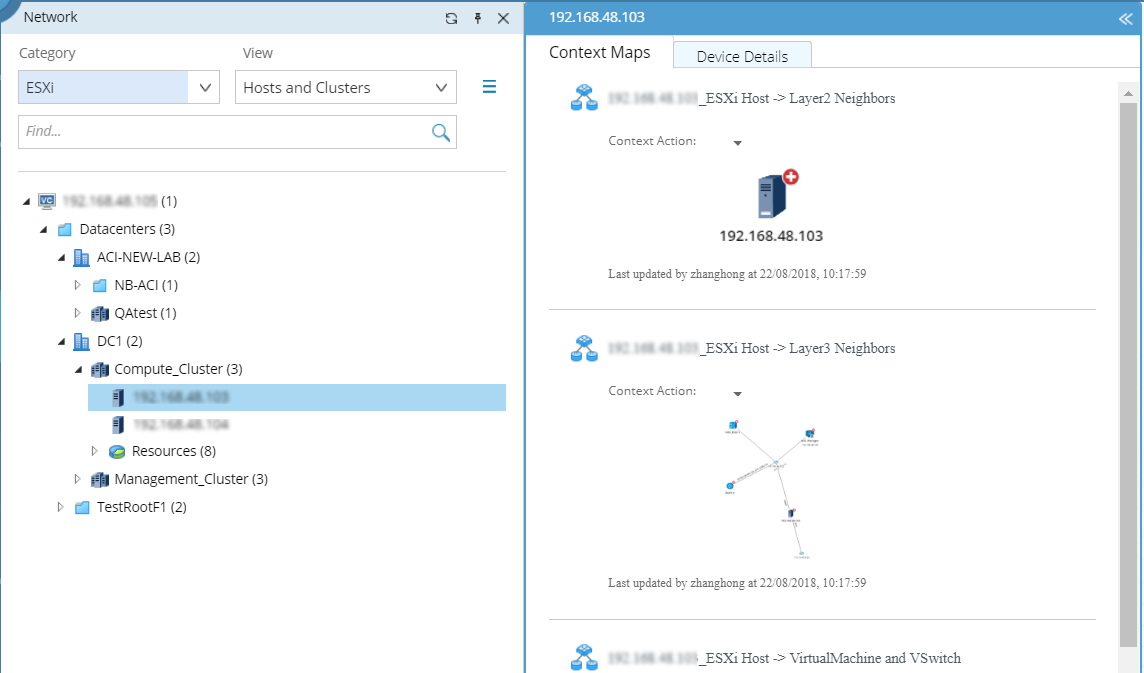

Example1: Context Maps for an ESXi Host node.

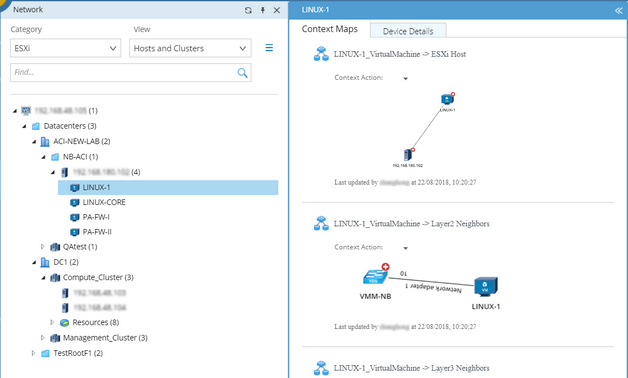

Example2: Context Maps for a VM node.

Tip: For more information about the vCenter context maps, see Context Maps of vCenter Nodes for details.
