To view the triggered diagnosis log:

1.Click and select Intent-Based Triggered Automation.

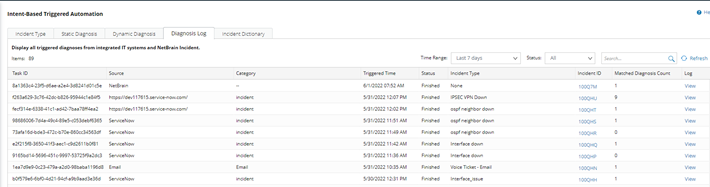

2.Navigate to the Diagnosis Log pane. By default, logs of all triggered Diagnoses are listed.

3.Filter the diagnosis by the time range and status.

The diagnosis :

• Auto trigger diagnosis by the Integrated IT systems

• Manually triggered Diagnosis from the Integrated IT systems

• Manually triggered maps from the Integrated IT systems

• Manually triggered Diagnosis from NetBrain Incident Portal

Each task has the following fields:

• Triggered Task ID

• Source: integrated IT system, NetBrain, or Incident Portal

• Category: the Integrated IT system category or empty if it is from NetBrain Incident.

• Triggered time.

• The tasks status: Pending, Running, Finished, aborted, or Failed.

• Incident type: can be none if no Incident type is matched.

• Incident ID: none if no Incident is matched.

• Matched diagnosis count: the number of diagnoses triggered by this task.

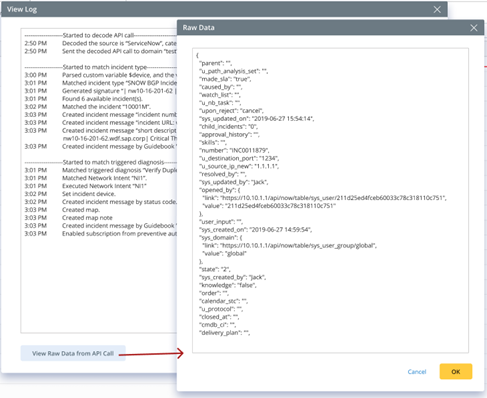

• Log: view the execution log of this task.
