More Built-in Data and Functions to Support IPv6

More Built-in Data to Support IPv6

The following built-in data have been added to the NetBrain platform to facilitate the subsequent data analysis and better support the IPv6 related functionalities:

#

Data Table

Description

Improved Status

1

Route Table

Add a new NCT table: IPv6 Route Table.

Only support data retrieval via CLI

2

CDP Table

Add two more columns to the existing CDP table to retrieve the Global IPv6 Address and Link Local Address

Only support data retrieval via CLI

3

Neighbor Discover Table

Provide a separate IPv6 neighbor table for IPv6; the columns resolved by NCT are Type, IPv6 Global Address, MAC address, Interface, Vlan, Private Vlan, Age, State, and Time Left.

Only support data retrieval via CLI

4

Interface Information

Add the additional command of the IPv6 interface to analyze the IPv6 interface-related information when parsing the config file.

Only support data retrieval via CLI

More Functions Supporting IPv6

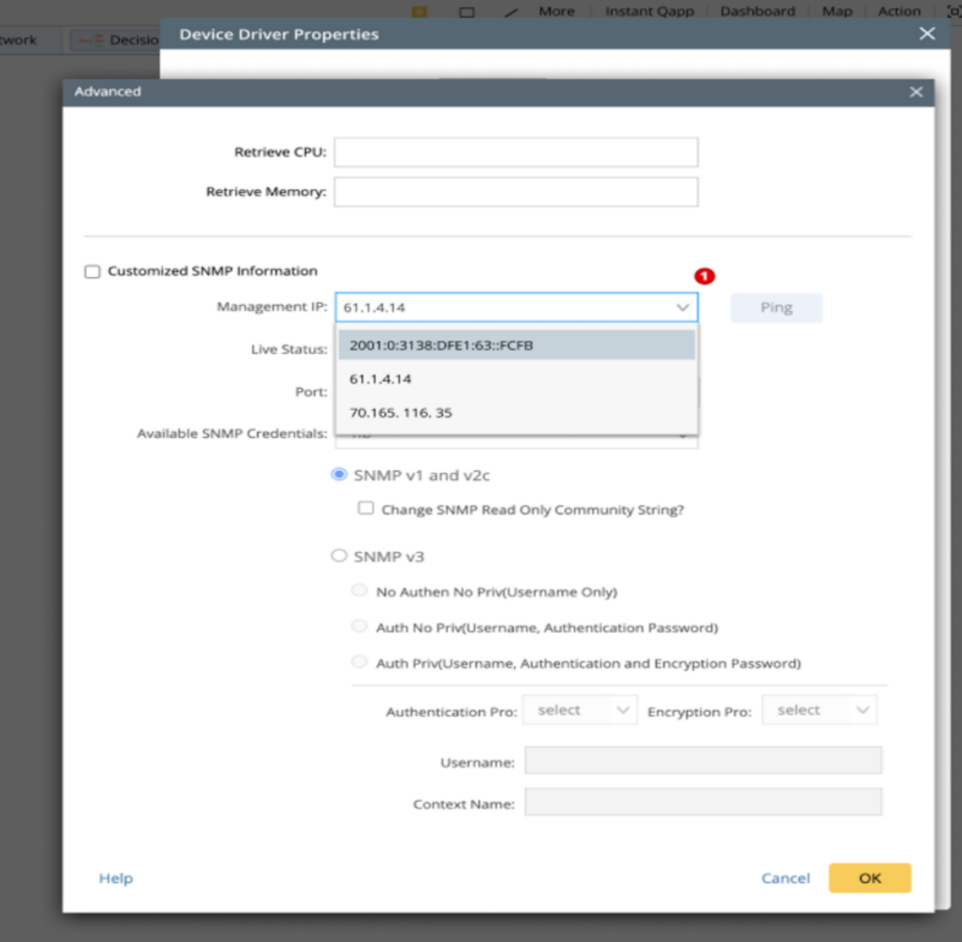

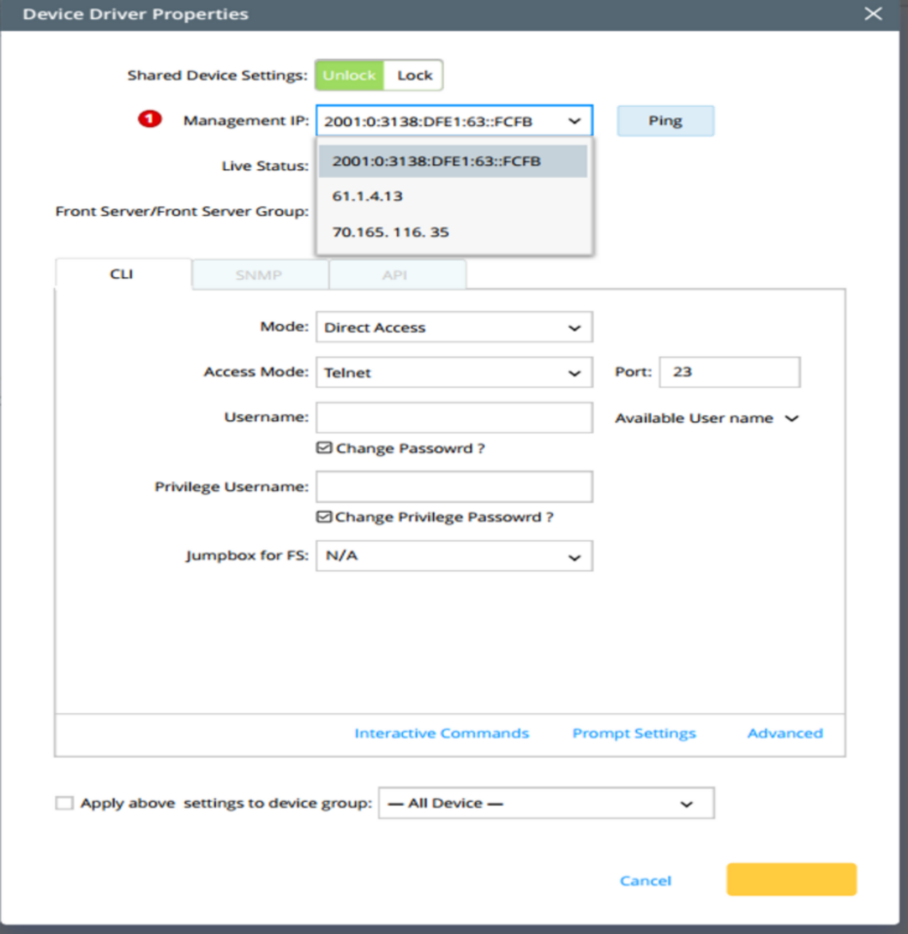

1.Share/Private Device Settings: the device management IP supports IPv4 and IPv6.

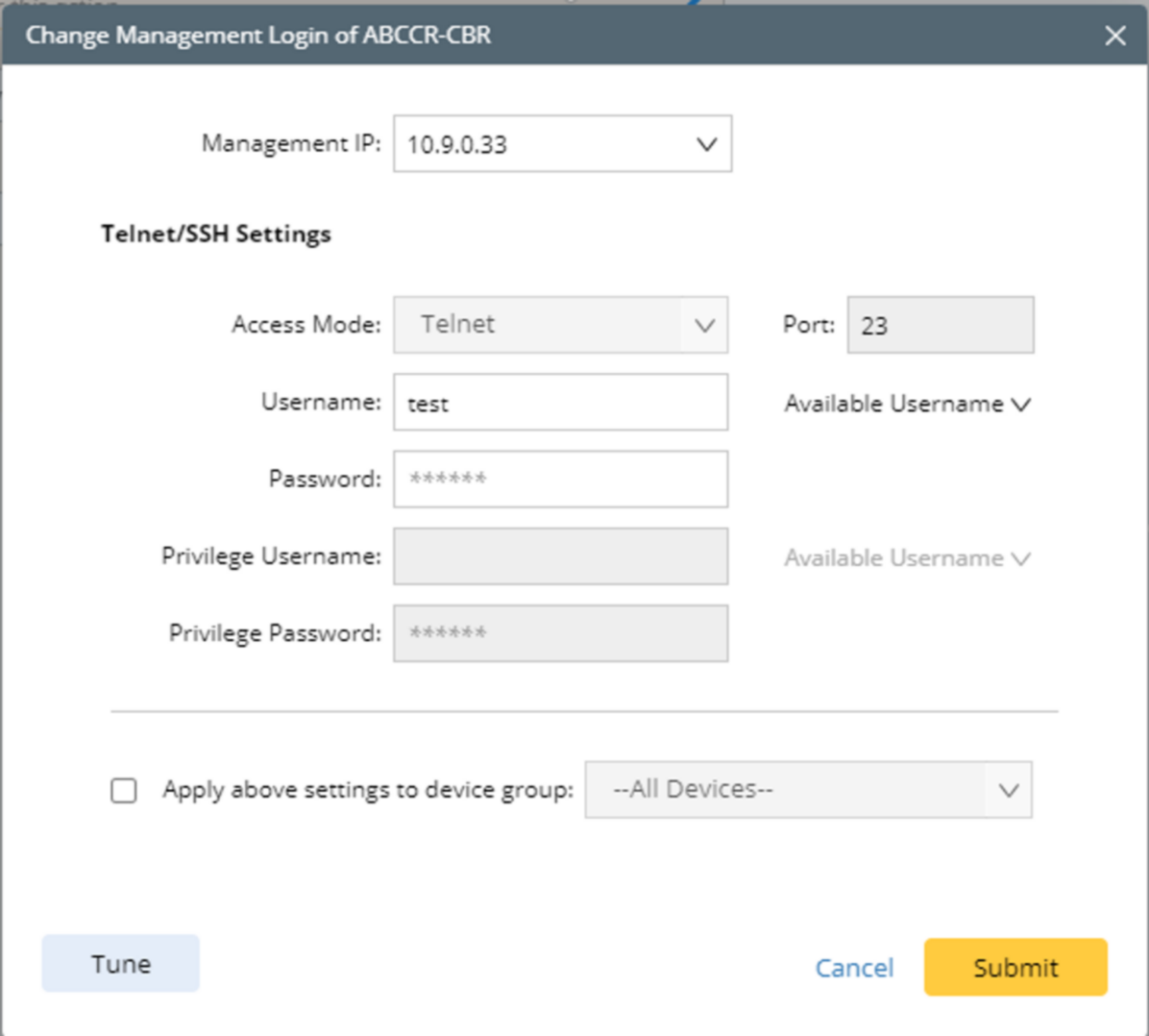

2.Change Management Login Settings now supports IPv4 and IPv6.

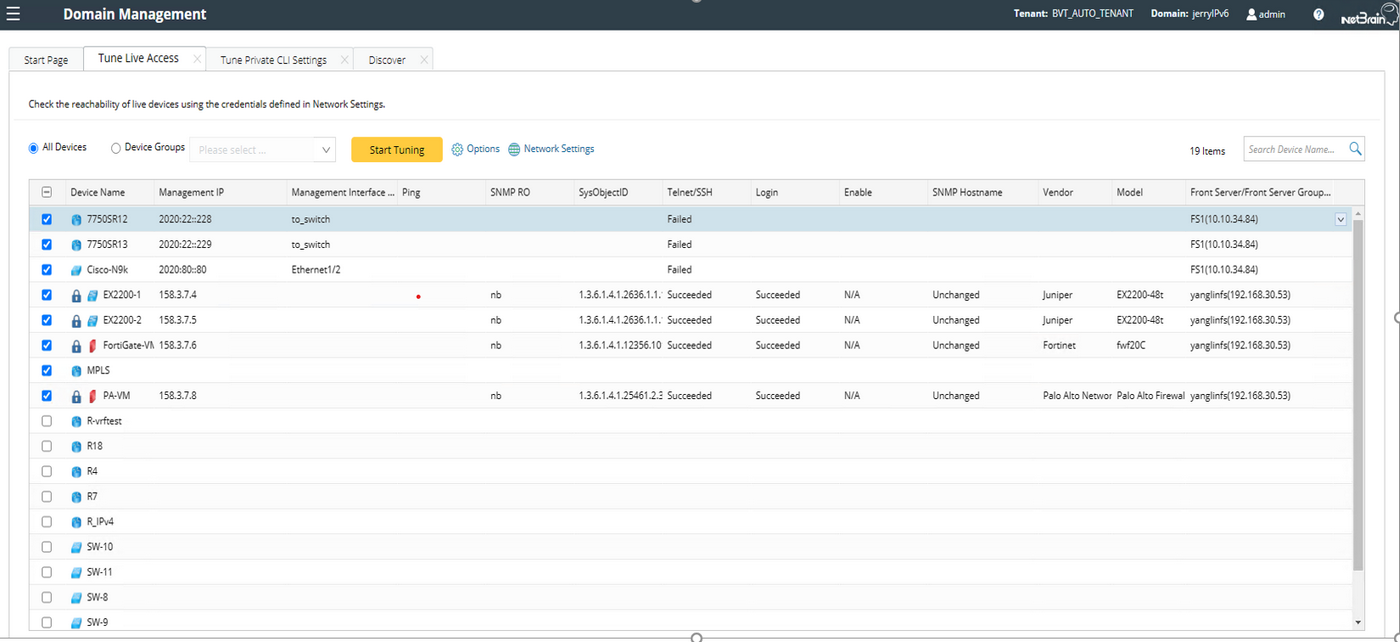

3.Batch Tune: the management IP in both Tune Live Access Settings and Tune Private CLI Settings now supports IPv4 and IPv6. In addition, the management IP in the UI supports the display of IPv4/IPv6 address format.


4.Fine Tune: the following functions of Fine Tune also support the IPv6 address format.

#

Function

Description

1

Unknown IP

Unknown IP supports IPv6 address format.

2

Discovered Device

Management IP supports IPv6 address format.

3

Missed Devices

Management IP supports IPv6 address format.

4

Discovered by SNMP

Management IP supports IPv6 address format.

5

Unknow SNMP SysObjectID

Management IP supports IPv6 address format.

6

Unclassified Network Devices

Management IP supports IPv6 address format.
