To enhance the programming ability of the Execute CLI Commands node, extend the function of supporting highlighting device and interface. You can specify the conditions and the effects of highlighting. Then the corresponding effect can be directly displayed on the target devices on the map after execution.

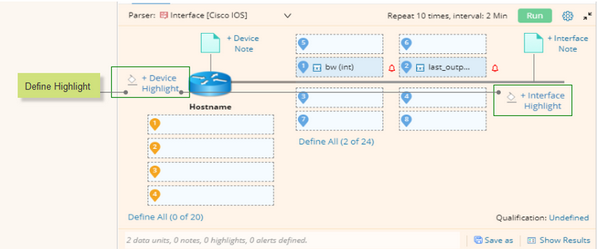

The entrances of highlight definition:

▪Highlight Device:

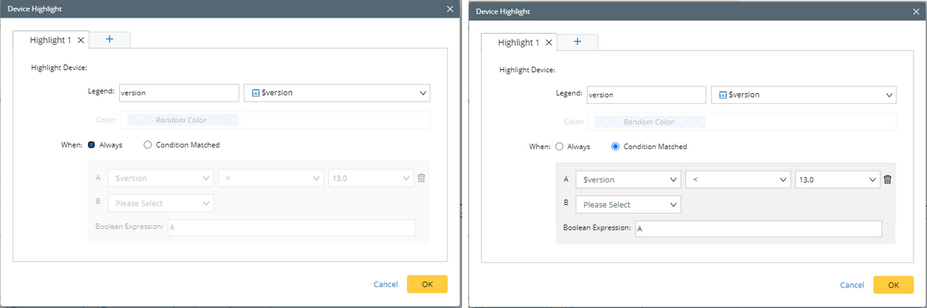

                                                                         Always                                                                                                                When Condition Matched

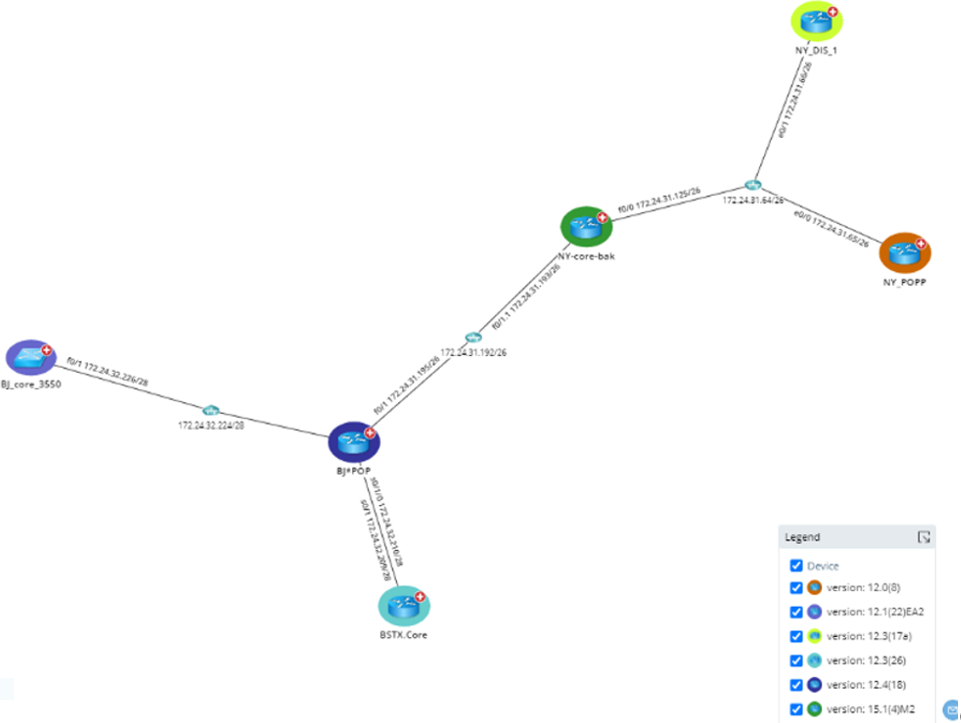

With the above device highlight definition, the devices shown on the map will be highlighted if the specified condition matched:

▪Highlight Interface:

                                                                        Always                                                                                                                When Condition Matched

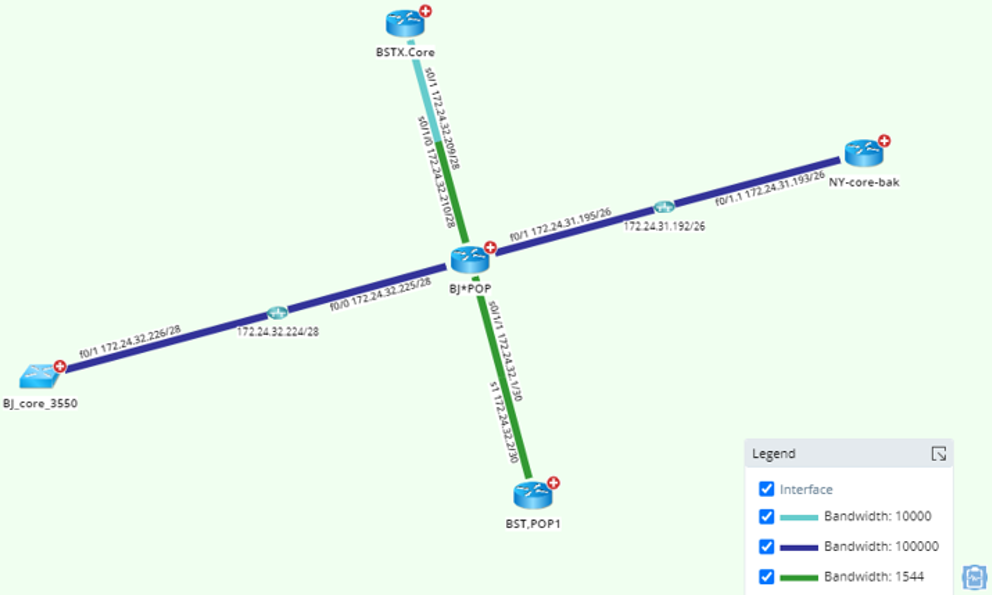

With the above interface highlight definition, the interfaces shown on the map will be highlighted if the specified condition is matched.
