The architect engineer can discover a live or baseline path when the network is healthy and focuses on solving the problem of the path 1st hop and last hop, which allows you to find the most appropriate source and destination and select Not-Directly-Connected device as gateway.

A/B IntelliSense

You may often have difficulty selecting the first hop while defining the path due to the duplicate IP, HSRP, HA group, etc. The most common usage scenario is that different end systems use the same duplicate IP, making path calculations have accuracy problems but you do not know how to solve them.

The A/B IntelliSense dialog has been improved to address these issues:

▪The main information of each item to be selected is listed in the IntelliSense dialog so that users can distinguish between different devices to achieve the purpose of quickly selecting the required items.

▪List the devices with major technologies (such as Duplicate IP, HA, HSRP, etc.) according to the rules to facilitate users to distinguish.

The format and supported function of IntelliSense dialog for different types of devices are as follows:

Entered item

Matched item

Displayed Information

Supported Operations

IP

Device Interface IP

Interface IP

Device Name

Interface Name

Vendor module

Site

View neighbor map

HSRP/VRRP/GLBP Virtual IP

Virtual IP

Virtual IP Tag

Tech Protocol

Real IP summary

Real IP

Real IP Device Name

Real IP Device interface Name

Real IP Device Vendor module

Real IP Device Site

View neighbor map

Internet Cloud

IP address

Cloud Type

Connected Switch Port

View neighbor map

MPLS Cloud

IP address

Cloud Type

Connected Switch Port

View neighbor map

Endsystem

IP address

Device Name

Connected Switch Port

View neighbor map

Unknown Endsystem

IP address

DNS Name

Connected Switch Port

View neighbor map

Unknown IP

IP address

View neighbor map

HA Group

HA tag

HA interface IP

Device Name

Interface Name

Vendor Module

Site

View neighbor map

Duplicate IP

IP address

Duplicate IP summary

Different IPs correspond to different device types, displaying information in different formats as above.

View neighbor map

Keyword

Device Name

Device Name

Type

Vendor module

Site

Interface IP

View neighbor map

DNS Name

DNS Name

IP address

Connected Switch Port



View neighbor map

Internet Cloud

Cloud Name

Cloud Type

Connected Switch Port



View neighbor map

MPLS Cloud

Cloud Name

Cloud Type

Connected Switch Port



View neighbor map

MAC Device Name

Device Name

DNS Name

Connected Switch Port



View neighbor map

Application Name,Path Name

Path Source Destination Protocol

Path Name

Application name

Latest result time



Display effect of intellisense when entering:

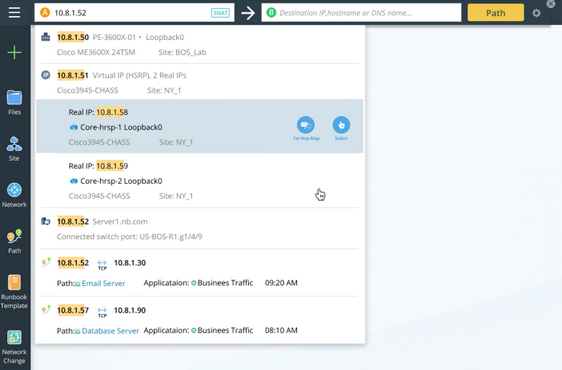

▪IP address:

▪Hostname:

▪Internet Cloud:

▪Unknown IP:

▪Duplicate IP:

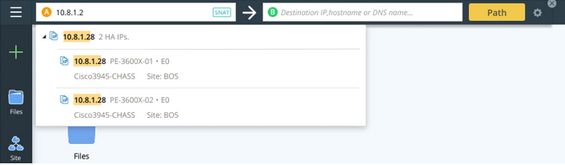

▪HA:

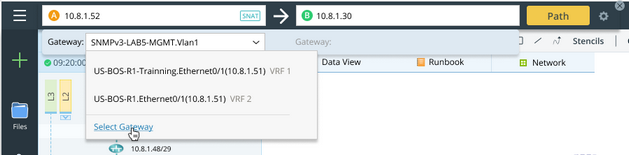

Select Not-Directly-Connected Device as Gateway for End system

During path calculation, you can select the interface of a not-directly-connected device as the gateway to improving the following circumstances:

▪The gateway calculated by path is not the one you want.

▪You do not manage the gateway device.

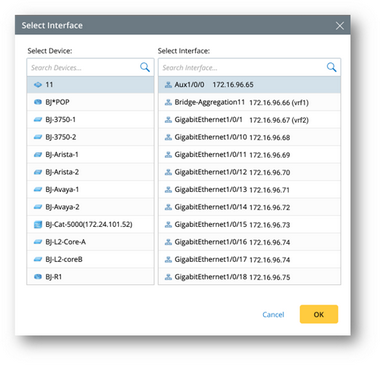

For the end system, you can select any device’s interface with configured IP as the gateway. However, only the current device’s interface with configured IP is supported to be the gateway for a network device.
